SFSA032GM1AA4TO-I-DB-616-STD
SSD 32GB M.2 SLC SATA III 3.3VManufacturer: Swissbit
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More

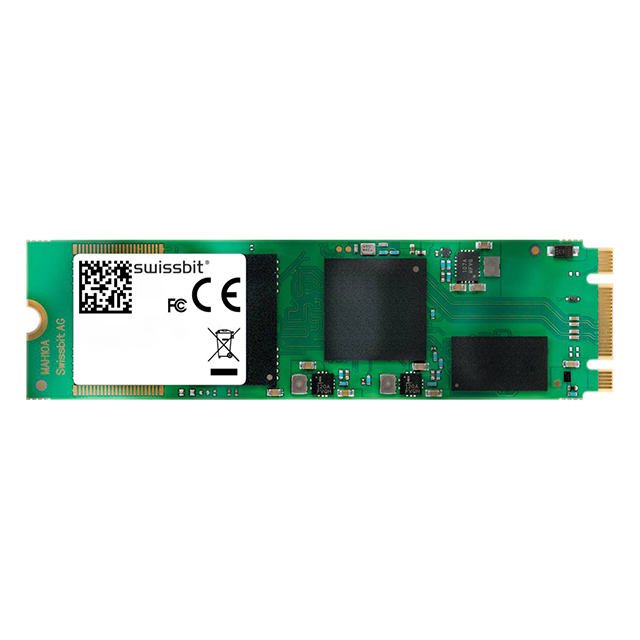

The Swissbit X-600M2 series SFSA032GM1AA4TO-I-DB-616-STD is a 32GB M.2 SATA III solid-state drive leveraging SLC NAND flash technology. Designed for demanding environments, it operates across an industrial temperature range of -40°C to 85°C. This module offers read speeds up to 520MB/s and write speeds up to 250MB/s, powered by a 3.3V supply with a maximum current draw of 515mA. Its M.2 form factor measures 80.00mm x 22.00mm x 3.30mm. This component is suitable for applications in industrial automation, embedded systems, and data acquisition where high reliability and consistent performance are critical.
Additional Information
Series: X-600M2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 80.00mm x 22.00mm x 3.30mm |
| Memory Size | 32GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Type | SATA III |
| Weight | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Current - Max | 515mA |
| Form Factor | M.2 Module |
| Speed - Read | 520MB/s |
| Speed - Write | 250MB/s |
