SFPA32GBQ1BO8TO-I-QT-243-STD
SSD 32GB 2.5"" SLC ATA 3.3V-5VManufacturer: Swissbit
Categories: Solid State Drives (SSDs), Hard Disk Drives (HDDs)
Quality Control: Learn More
Swissbit P-120 series SFPA32GBQ1BO8TO-I-QT-243-STD is a 32GB SLC NAND Solid State Drive with an ATA interface. This 2.5-inch form factor drive operates across a wide temperature range of -40°C to 85°C, making it suitable for demanding industrial and embedded applications. It supports supply voltages of 3.3V and 5V, with a maximum current draw of 160mA. The drive offers read speeds of up to 40MB/s and write speeds of up to 35MB/s. Its robust SLC NAND technology ensures high endurance and reliability, critical for data acquisition, automation, and critical system storage. The component is supplied in a tray.
Additional Information
Series: P-120RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Size / Dimension | 100.20mm x 69.85mm x 9.00mm |
| Memory Size | 32GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Type | ATA |
| Weight | 3 oz (85.49 g) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V, 5V |
| Current - Max | 160mA |
| Form Factor | 2.5"" |
| Speed - Read | 40MB/s |
| Speed - Write | 35MB/s |
Request a Quote
Clients Also Buy

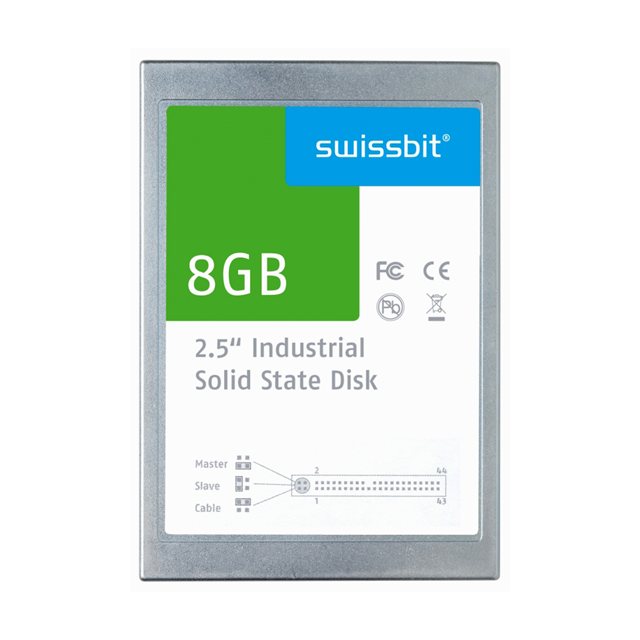

SFPA8192Q1BO2TO-I-QT-243-STD
