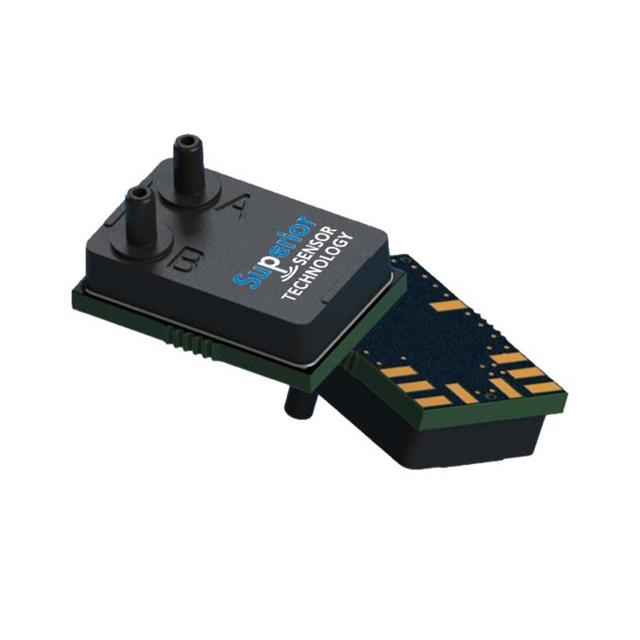

ND005D-SM02-R
SENSOR 5PSID 0.08"" 16BITManufacturer: Superior Sensor Technology, Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.5PSI ~ 5PSI (3.45kPa ~ 34.47kPa) Differential Male - 0.08"" (2.13mm) Tube, Dual 16 b 11-SMD, No Lead, Top Port
Additional Information
Series: NDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 11-SMD, No Lead, Top Port |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Output | 16 b |
| Operating Pressure | 0.5PSI ~ 5PSI (3.45kPa ~ 34.47kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.07% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 2.8V ~ 3.5V |
| Port Size | Male - 0.08"" (2.13mm) Tube, Dual |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 15PSI (103.42kPa) |
