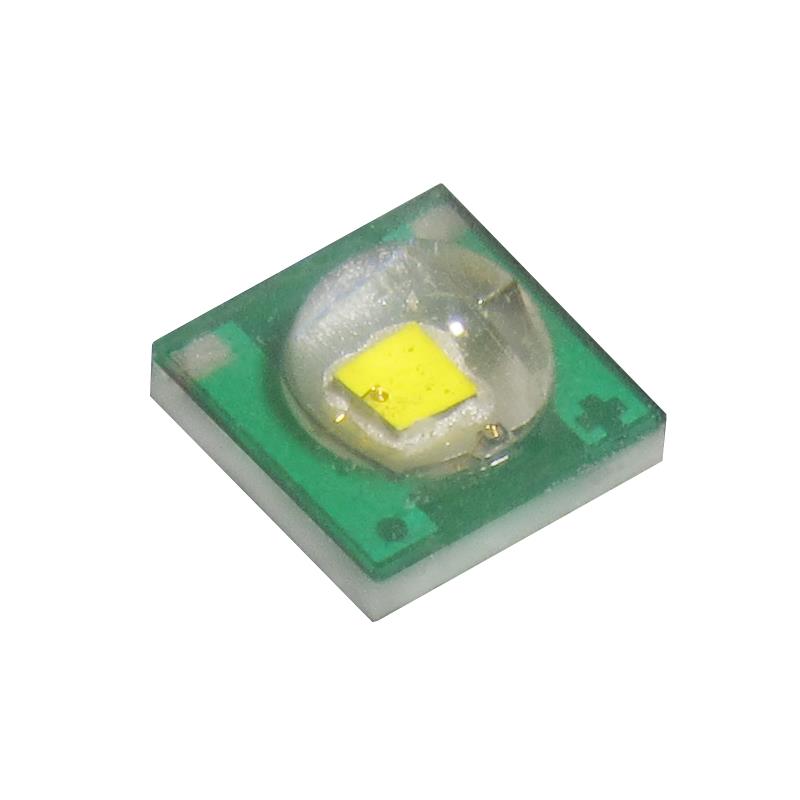

XZNWF160SCA
3.45X3.45MM WHITE HIGH POWER SMDManufacturer: SunLED
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting - White, Cool 6000K (5310K ~ 7040K) 3.35V 350mA 110° 1414 (3535 Metric)
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.35V |
| Current - Test | 350mA |
| Viewing Angle | 110° |
| Current - Max | 700mA |
| Supplier Device Package | 1414 |
| Lumens/Watt @ Current - Test | 85 lm/W |
| Height - Seated (Max) | 0.087"" (2.20mm) |
| CCT (K) | 6000K (5310K ~ 7040K) |
| CRI (Color Rendering Index) | - |
| Flux @ 25°C, Current - Test | 100lm (80lm ~ 120lm) |
| Flux @ 85°C, Current - Test | - |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy

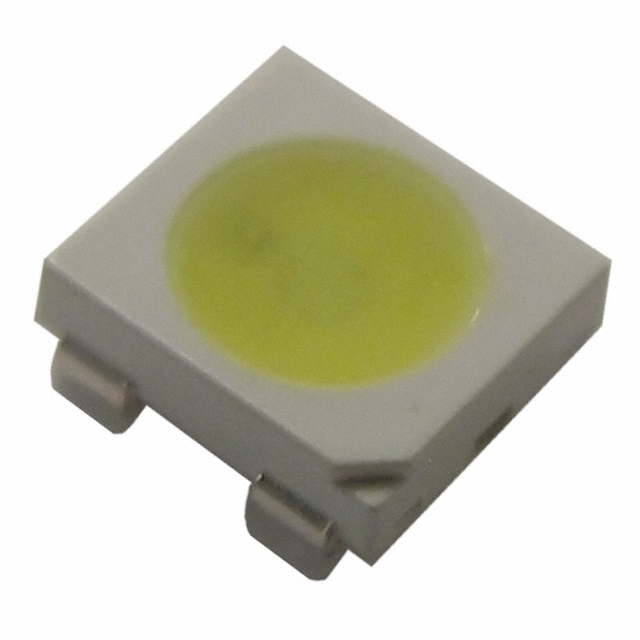

XZCW25X92S-4
LED WHITE SMD

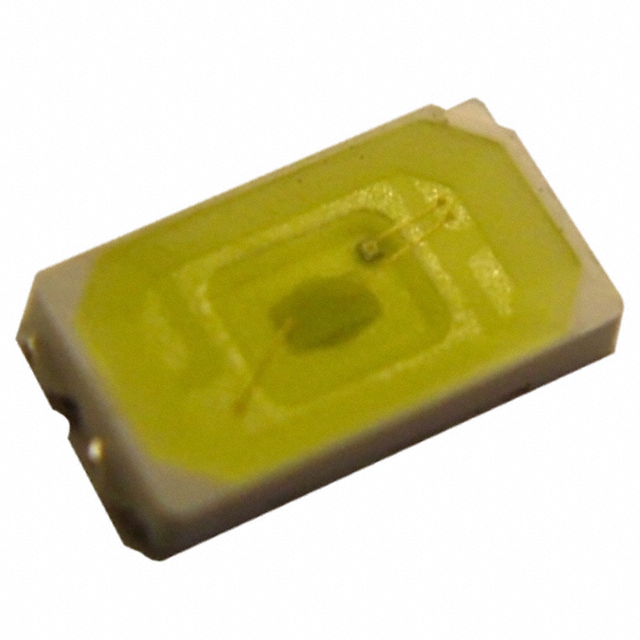

XZRUW46X143SCA
LED COOL WHITE 6000K 5630

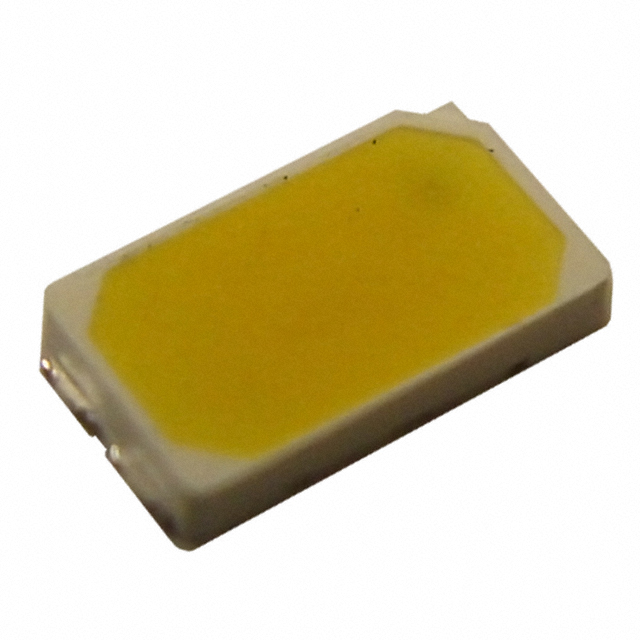

XZRUW46X143SWB
