XZMYLA92S-4
LED YELLOW CLEAR CHIP SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

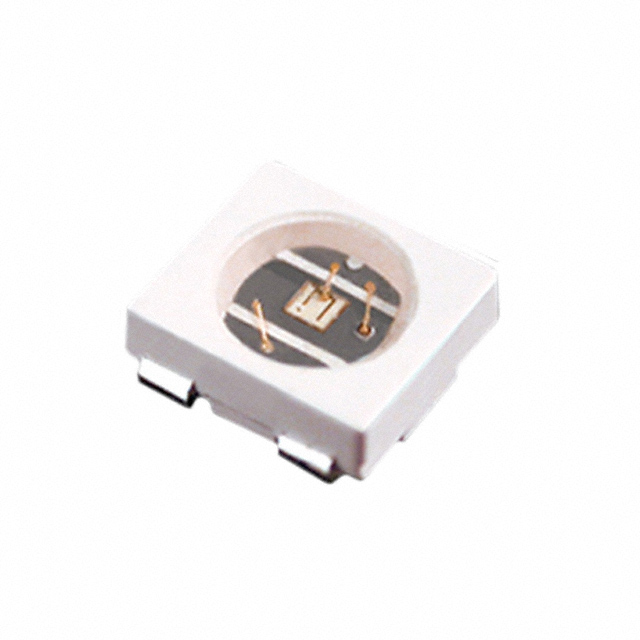

SunLED XZMYLA92S-4 is a Yellow, 590nm LED designed for surface mount applications. This discrete LED features a 2.7V typical forward voltage and a 150mA test current, yielding a luminous intensity of 2690mcd. The component is housed in a 4-SMD, J-Lead package with a colorless, clear lens measuring 2.60mm in diameter and a round with flat top style. Its dimensions are 3.50mm L x 3.15mm W with a maximum height of 1.15mm, offering a wide 120° viewing angle. Supplied in Tape & Reel (TR) packaging, this LED is suitable for indication applications across various industries including automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Yellow |
| Size / Dimension | 3.50mm L x 3.15mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2690mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.7V |
| Lens Color | Colorless |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Height (Max) | 1.15mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.60mm Dia |
