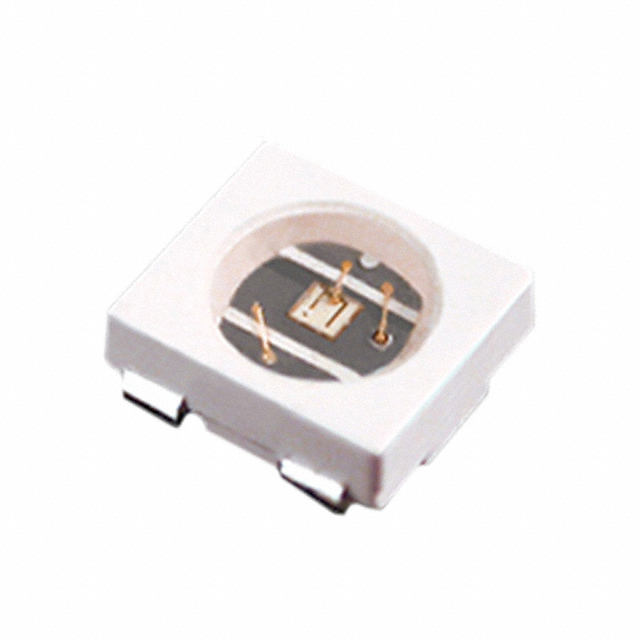

XZMOLA92S-4
LED RED CLEAR CHIP SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZMOLA92S-4 is a red, clear lens, surface mount LED designed for indication applications. This discrete component features a 625nm dominant wavelength and a 640nm peak wavelength, delivering 3090mcd of luminous intensity at a forward current of 150mA. The LED operates with a typical forward voltage of 2.5V. Its 4-SMD, J-Lead package measures 3.50mm L x 3.15mm W with a maximum height of 1.15mm. The clear, colorless lens has a diameter of 2.60mm and a round with flat top style, providing a wide 120° viewing angle. This component is supplied in Tape & Reel packaging. It is commonly utilized in automotive, industrial automation, and consumer electronics sectors for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Red |
| Size / Dimension | 3.50mm L x 3.15mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 3090mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Lens Color | Colorless |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Height (Max) | 1.15mm |
| Wavelength - Peak | 640nm |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.60mm Dia |
