XZMDK45S-9
LED RED CLR 2PLCC SMD BOTTOM ENTManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

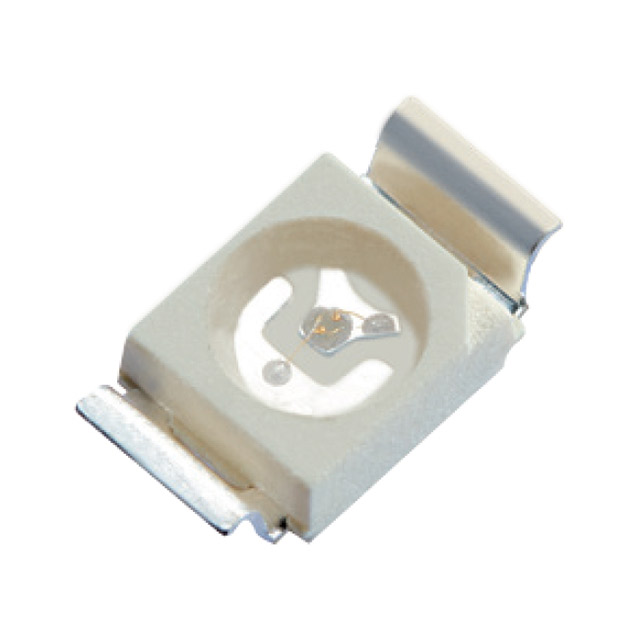

SunLED XZMDK45S-9 is a red clear LED with a 2-PLCC, Z-Bend SMD package designed for surface mount, bottom entry applications. This discrete LED component features a dominant wavelength of 630nm and a peak wavelength of 645nm, emitting a clear red light. It operates with a typical forward voltage of 1.95V and a standard test current of 20mA, achieving a millicandela rating of 98mcd. The lens is colorless and clear with a round, flat-top style, measuring 2.40mm in diameter. The overall dimensions of the component are 3.20mm in length and 2.80mm in width, with a maximum height of 1.90mm. This LED offers a wide viewing angle of 120°. It is supplied in Tape & Reel packaging. This component is utilized in various industrial applications, including automotive, consumer electronics, and industrial automation for visual indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 98mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 645nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
