XZMD20X92S-4
LED RED CLEAR CHIP SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

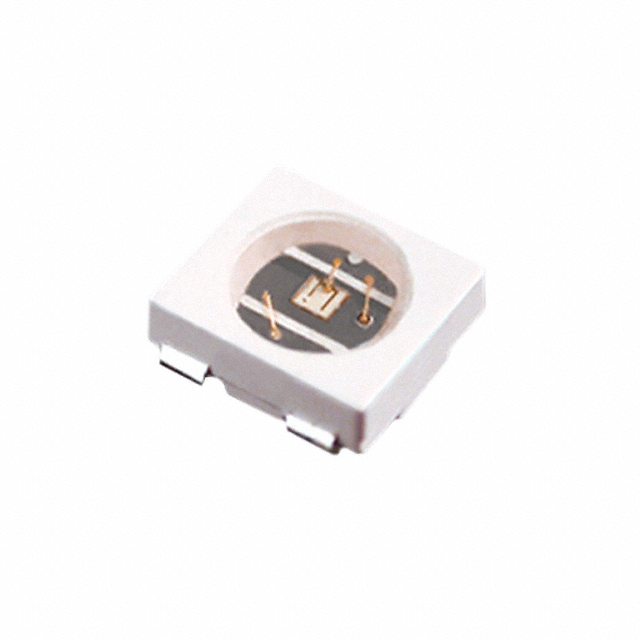

SunLED XZMD20X92S-4 is a red, clear lens, surface-mount LED component. This discrete LED operates with a typical forward voltage of 2.5V and a test current of 150mA, achieving a millicandela rating of 2100mcd. The dominant wavelength is 640nm with a peak wavelength of 660nm, providing a distinct red illumination. The component features a 4-SMD, J-Lead package with dimensions of 3.50mm L x 3.15mm W and a maximum height of 1.15mm. It offers a wide viewing angle of 120° with a clear, colorless lens. This device is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. The XZMD20X92S-4 is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Red |
| Size / Dimension | 3.50mm L x 3.15mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Lens Color | Colorless |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Height (Max) | 1.15mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.60mm Dia |
