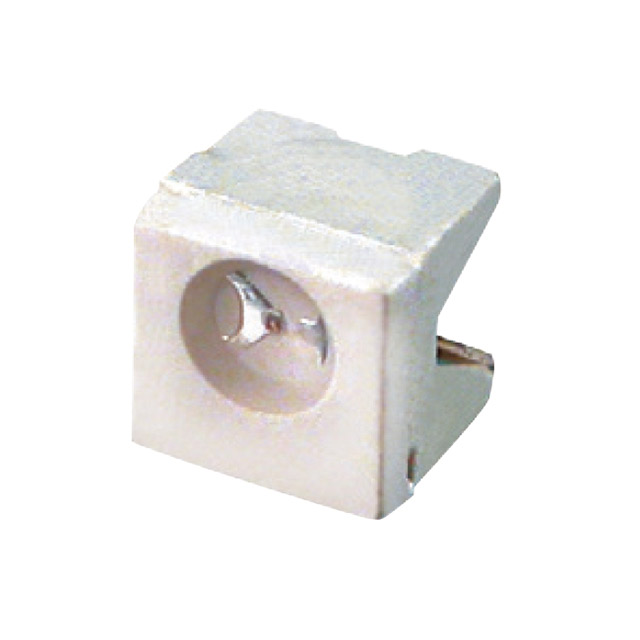

XZM2DG67S
LED GREEN CLEAR 2SMD R/AManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZM2DG67S is a green LED indication component, featuring a standard configuration with a 525nm dominant wavelength and 520nm peak wavelength. This 2-SMD, Boomerang package is designed for surface mount, right-angle mounting. The clear, colorless lens has a 2.40mm diameter and a flat top, with a typical forward voltage of 3.2V and a test current of 20mA. It provides a millicandela rating of 1195mcd with a wide 120° viewing angle. This component is suitable for applications in industrial automation, telecommunications, and consumer electronics where reliable visual feedback is critical. The part is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Color | Green |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 1195mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 4.00mm |
| Wavelength - Peak | 520nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
