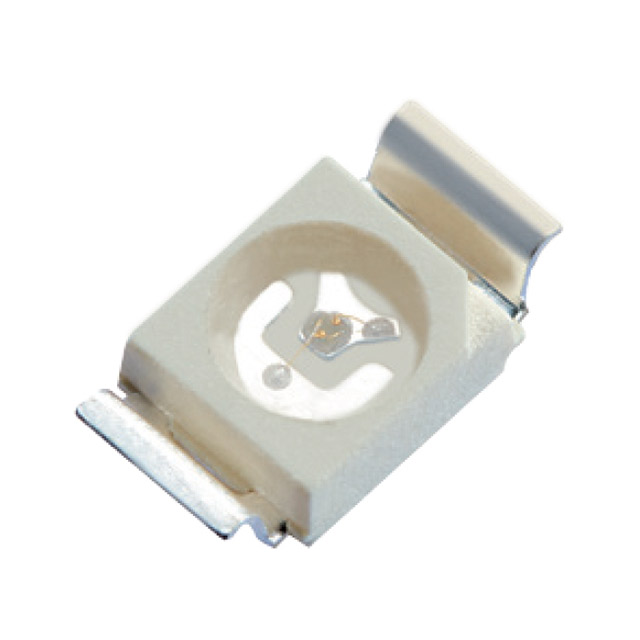

XZM2DG45S-9
LED GREEN CLR 2PLCC SMD BOT ENTManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZM2DG45S-9 is a green, clear lens LED designed for surface mount, bottom entry applications in a 2-PLCC package. This discrete LED component features a dominant wavelength of 525nm and a peak wavelength of 520nm, delivering 1395mcd luminous intensity at a typical forward voltage of 3.2V and test current of 20mA. The component has a 120° viewing angle, with a colorless, clear lens measuring 2.40mm in diameter and a round, flat top style. Its dimensions are 3.20mm L x 2.80mm W, with a maximum height of 1.90mm. This LED is commonly utilized in industrial automation, consumer electronics, and medical equipment for indication purposes. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 1395mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 520nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
