XZM2CYK45S-9
LED YL CLR 2PLCC SMD BOTTOM ENTManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

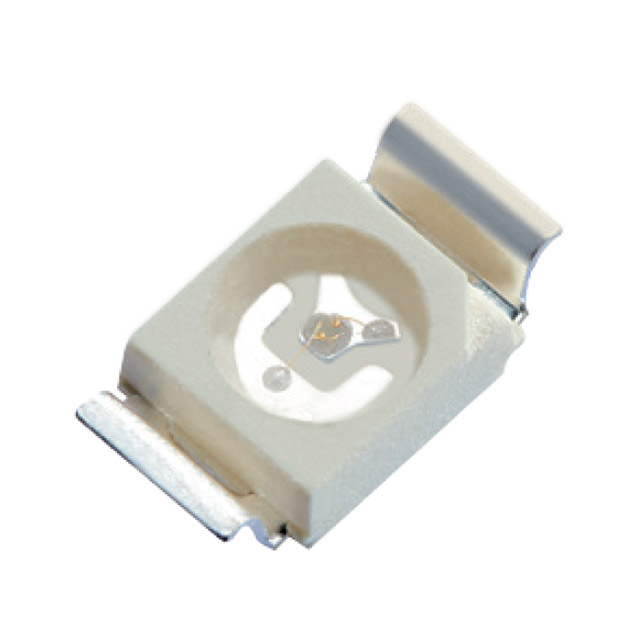

SunLED XZM2CYK45S-9 is a yellow, clear lens discrete LED designed for surface mount bottom entry applications. This 2-PLCC package component features a standard configuration with a forward voltage of 2V (typical) and a test current of 20mA, producing a millicandela rating of 447mcd. The LED emits light with a dominant and peak wavelength of 590nm. Its clear, colorless lens has a diameter of 2.40mm, and the component itself measures 3.20mm in length and 2.80mm in width, with a maximum height of 1.90mm. The viewing angle is 120°. This component is suitable for various indication applications across industries such as consumer electronics, industrial automation, and automotive systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 447mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
