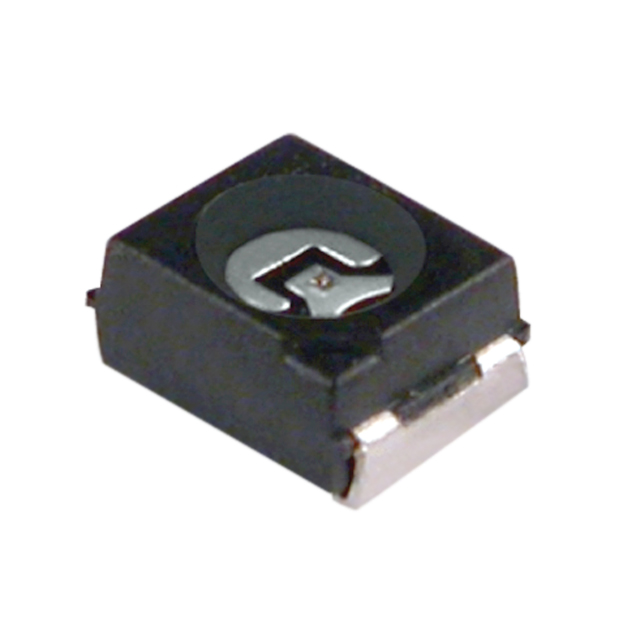

XZM2ACY45SB
LED YELLOW CLEAR 2PLCC SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZM2ACY45SB is a yellow, clear lens, surface mount LED from the NINJA series. This 2-PLCC package component emits light at a dominant wavelength of 590nm with a typical forward voltage of 2V. Tested at 20mA, it delivers a luminous intensity of 317mcd with a broad 120° viewing angle. The dimensions of the component are 3.20mm L x 2.80mm W, with a lens diameter of 2.40mm. This discrete LED is supplied on tape and reel (TR). Its specifications make it suitable for applications in industrial automation, consumer electronics, and general indication.
Additional Information
Series: NINJARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 317mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 590nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
Request a Quote
Clients Also Buy

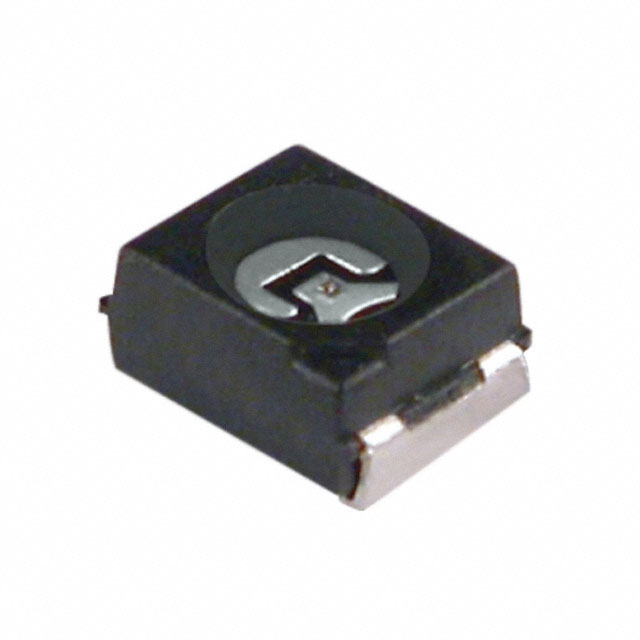

XZFBB45SB
LED BLUE CLEAR 2PLCC SMD

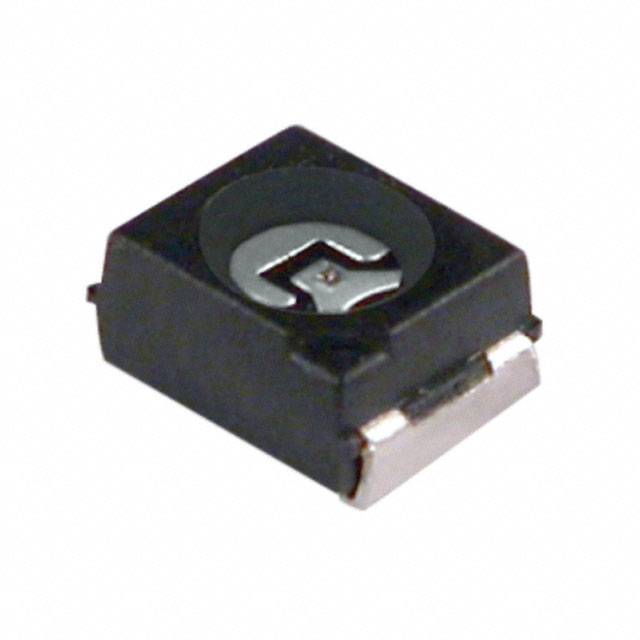

XZM2ACR45SB
