XZDGK67WT
LED GREEN CLEAR 2SMD R/AManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

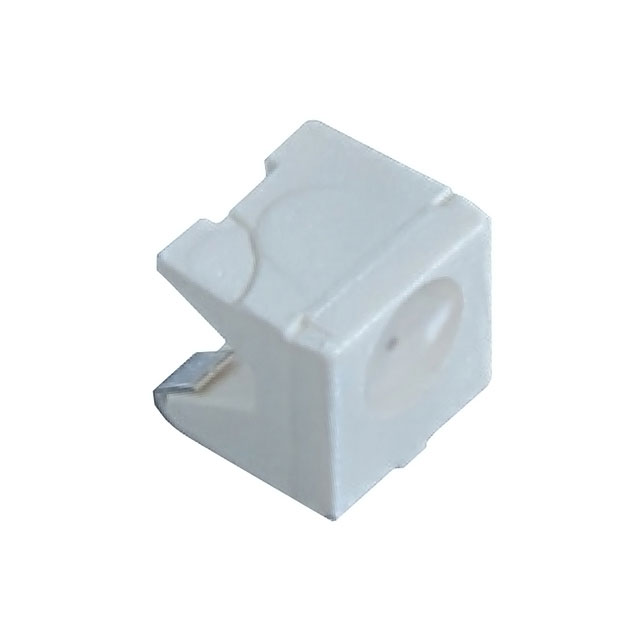

SunLED XZDGK67WT Green 525nm LED, a discrete surface-mount component, is designed for reliable indication. This 2-SMD, Boomerang package features a clear, colorless lens with a flat top, offering a 120° viewing angle. Operating at a typical forward voltage of 3.3V, it achieves a luminous intensity of 795mcd at 20mA test current. The peak wavelength is 515nm, with a dominant wavelength of 525nm. The component is supplied in Tape & Reel packaging. Applications include industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Color | Green |
| Size / Dimension | 3.60mm L x 4.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 795mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 4.10mm |
| Wavelength - Peak | 515nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
