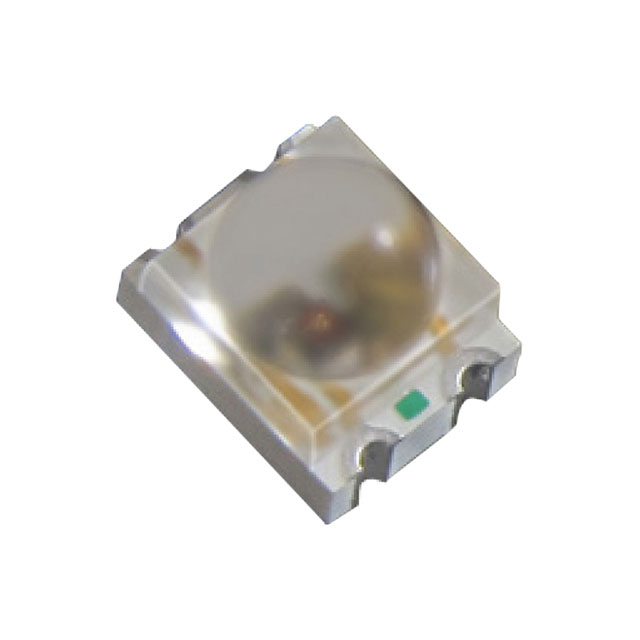

XZDGK45W30MAV-6
LED GREEN CLEAR 4SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZDGK45W30MAV-6 is a green, clear lens, 525nm dominant wavelength LED designed for surface mounting. This discrete indicator features a 3.5V typical forward voltage and a 30mA test current, achieving a luminous intensity of 2090mcd. The component is housed in a 1411 (3528 Metric) package, measuring 3.50mm L x 2.80mm W, with a 4-SMD supplier device package. Its round, domed top lens with a 60° viewing angle and colorless transparency makes it suitable for various illumination and indication applications across industries such as consumer electronics, automotive, and industrial equipment. The device is supplied on a Tape & Reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1411 (3528 Metric) |
| Color | Green |
| Size / Dimension | 3.50mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2090mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 30mA |
| Viewing Angle | 60° |
| Height (Max) | 3.40mm |
| Wavelength - Peak | 515nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 2.60mm Dia |
