XZDG80S-2HTA
LED GREEN CLEAR 2SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

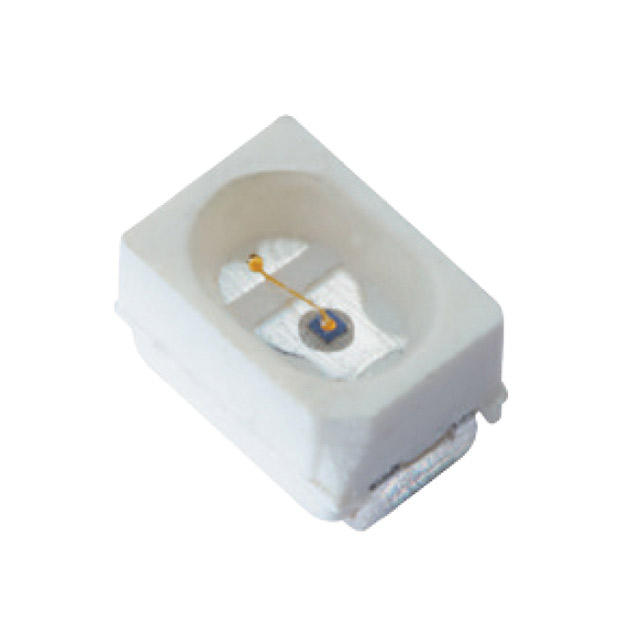

SunLED XZDG80S-2HTA is a green, clear lens, surface mount LED designed for discrete indication applications. This component features a 525nm dominant wavelength with a peak wavelength of 515nm, producing a luminous intensity ranging from 400mcd to 1000mcd at a 20mA test current. The 2-SMD, J-Lead package has a compact footprint of 2.00mm L x 1.40mm W and a maximum height of 1.30mm. The oval lens with a flat top measures 1.65mm x 1.15mm and offers a wide 120° viewing angle. The typical forward voltage (Vf) is 3.3V. This component is supplied in Tape & Reel packaging and is commonly utilized in industrial automation, consumer electronics, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 400mcd ~ 1000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 515nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Oval with Flat Top |
| Lens Size | 1.65mm x 1.15mm |
