XZCBDDGKME107SC2
LED RGB CLEAR 6SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

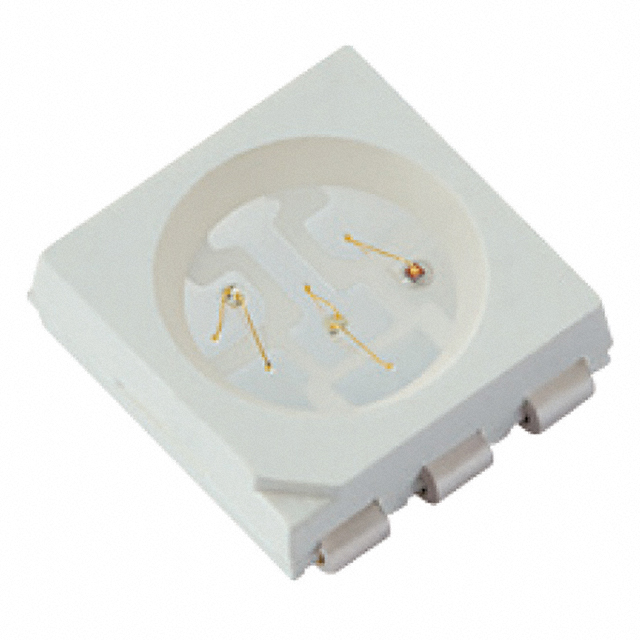

SunLED XZCBDDGKME107SC2 is a 2020 (5050 Metric) surface mount RGB LED, featuring independent control of Red, Green, and Blue emitters. This component offers dominant wavelengths of 624nm (Red), 525nm (Green), and 465nm (Blue), with typical forward voltages of 2.05V (Red), 3.5V (Green), and 3.5V (Blue) at a test current of 30mA for Red and Green, and 20mA for Blue. Millicandela ratings are 317mcd (Red), 695mcd (Green), and 198mcd (Blue). The LED is housed in a 6-SMD package with clear, colorless lens material and a 120° viewing angle. Dimensions are 5.00mm L x 5.00mm W, with a maximum height of 1.50mm. This component is suitable for applications in consumer electronics, industrial automation, and automotive lighting where customizable color indication is required. The XZCBDDGKME107SC2 is supplied on a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 317mcd Red, 695mcd Green, 198mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.5V Green, 3.5V Blue |
| Lens Color | Colorless |
| Current - Test | 30mA Red, 30mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | 632nm Red, 515nm Green, 460nm Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 465nm Blue |
| Supplier Device Package | 6-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
