XZCBD80S-2HTA
LED BLUE CLEAR 2SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

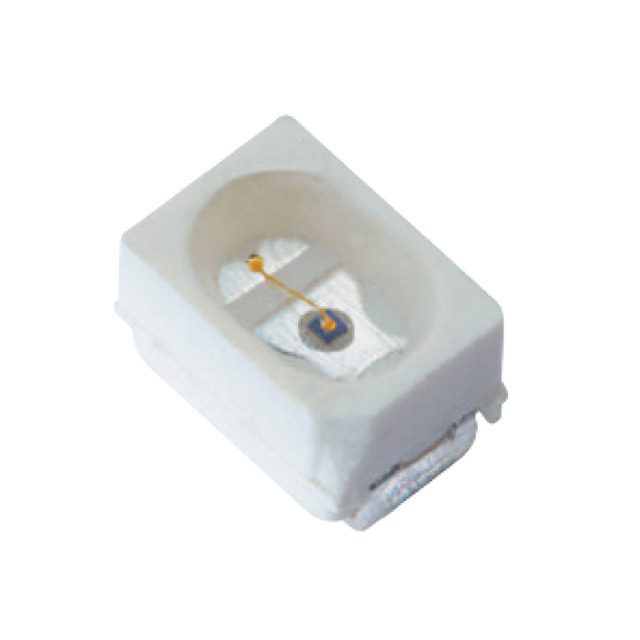

SunLED XZCBD80S-2HTA is a clear lens, oval with a flat top, blue LED designed for surface mount applications. This 2-SMD, J-Lead component emits light at a dominant wavelength of 465nm and a peak wavelength of 460nm, with a forward voltage of 3.3V (typical). The LED provides a millicandela rating between 80mcd and 300mcd with a 20mA test current, offering a wide viewing angle of 120°. The compact dimensions of 2.00mm L x 1.40mm W and a maximum height of 1.30mm make it suitable for space-constrained designs. This component is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment for status indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Blue |
| Size / Dimension | 2.00mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 80mcd ~ 300mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 460nm |
| Wavelength - Dominant | 465nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Oval with Flat Top |
| Lens Size | 1.65mm x 1.15mm |
