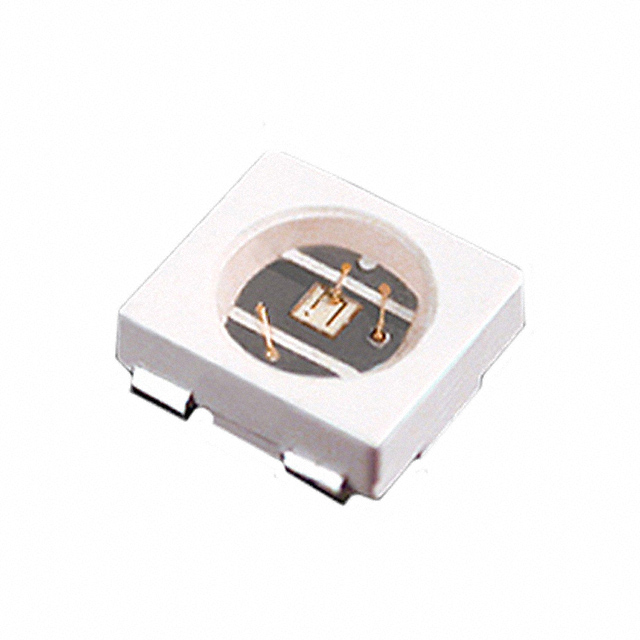

XZCB25X92S-4
LED BLUE CLEAR CHIP SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZCB25X92S-4 is a blue, clear lens, surface-mount LED with a 450nm dominant wavelength and 445nm peak wavelength. This discrete component operates at a typical forward voltage of 3.3V and features a 150mA test current, delivering 1300mcd luminous intensity. The LED is housed in a 4-SMD, J-Lead package with dimensions of 3.50mm L x 3.15mm W and a maximum height of 1.15mm. Its clear, colorless lens design, with a 2.60mm diameter and a round, flat-top style, provides a 120° viewing angle. Commonly utilized in industrial automation, medical devices, and consumer electronics for indication purposes, this component is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Blue |
| Size / Dimension | 3.50mm L x 3.15mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1300mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Height (Max) | 1.15mm |
| Wavelength - Peak | 445nm |
| Wavelength - Dominant | 450nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.60mm Dia |
