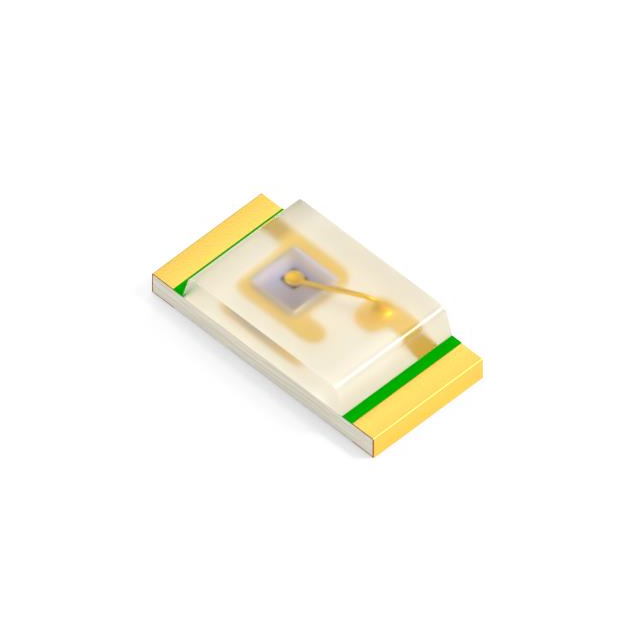

XZBWR68F5MAV-3
LED WHITE 0402 SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZBWR68F5MAV-3 is a white, surface-mount LED designed for high-density board applications. This 0402 (1005 Metric) package component features a standard configuration with a typical forward voltage of 2.9V and a forward current of 5mA. The device emits a bright white light with a millicandela rating of 84mcd and a wide viewing angle of 160°. Its compact dimensions of 1.00mm L x 0.50mm W and a maximum height of 0.25mm make it suitable for applications where space is at a premium, including consumer electronics, industrial control systems, and portable devices. The LED is supplied on a tape and reel for automated pick-and-place assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Color | White |
| Size / Dimension | 1.00mm L x 0.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 84mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | Yellow |
| Current - Test | 5mA |
| Viewing Angle | 160° |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 0402 |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 0.60mm x 0.50mm |
