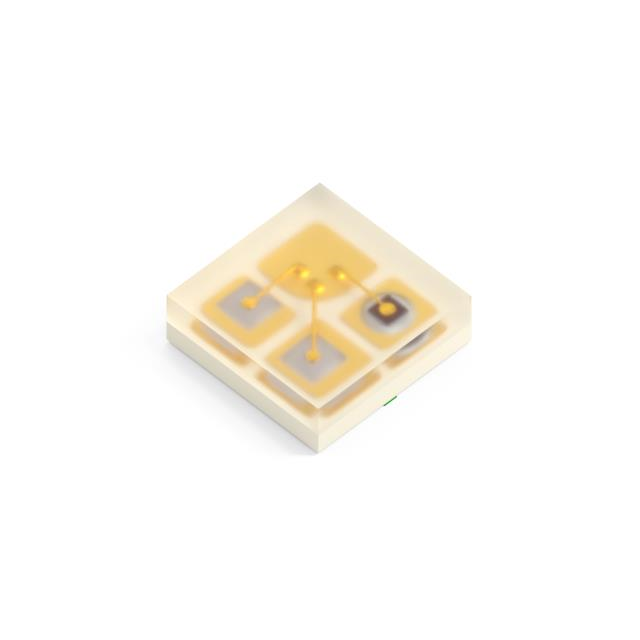

XZBGRBBRMER158W
LED RGB CLEAR 4SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More
SunLED XZBGRBBRMER158W is a 4-SMD, No Lead, surface mountable RGB LED with a common anode configuration. This discrete LED indicator features distinct dominant wavelengths of 624nm for red, 527nm for green, and 467nm for blue, with corresponding peak wavelengths of 632nm, 518nm, and 461nm. Typical forward voltage requirements are 1.85V for red, 3V for green, and 2.9V for blue, tested at 5mA for each color. The component offers millicandela ratings of 29mcd (Red), 89mcd (Green), and 19mcd (Blue). The clear, colorless lens is square with a flat top, providing a 140° viewing angle. Dimensions are 0.65mm in length and 0.65mm in width, with a maximum height of 0.25mm. This component is supplied in Tape & Reel packaging and finds application in various electronic systems requiring color-changing indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 0.65mm L x 0.65mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 29mcd Red, 89mcd Green, 19mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 1.85V Red, 3V Green, 2.9V Blue |
| Lens Color | Colorless |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 140° |
| Height (Max) | 0.25mm |
| Wavelength - Peak | 632nm Red, 518nm Green, 461nm Blue |
| Wavelength - Dominant | 624nm Red, 527nm Green, 467nm Blue |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 0.65mm |
