XZBGR155W5MAV
LED GREEN CLEAR 2SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

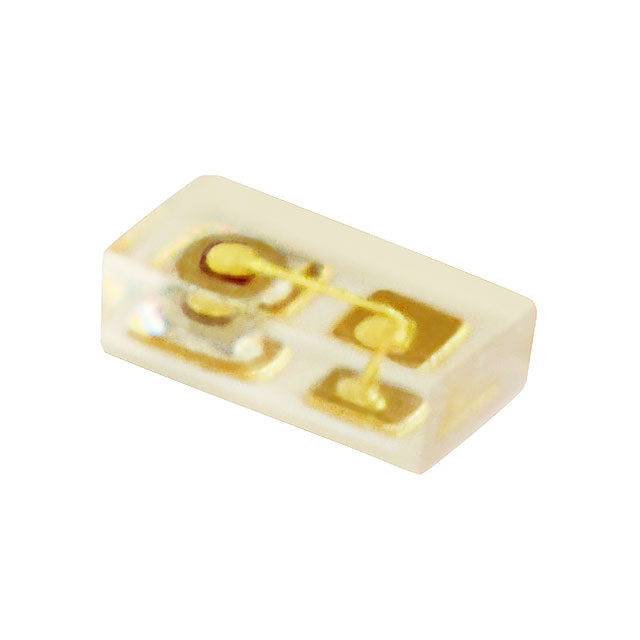

The SunLED XZBGR155W5MAV is a Green NanoPoint-0201 series LED designed for surface mount applications. This 2-SMD, No Lead component emits green light with a dominant wavelength of 527nm and a peak wavelength of 518nm. It features a clear, colorless lens with a flat top, measuring 0.65mm x 0.35mm, and a height of 0.25mm. The LED is rated for a forward voltage of 3V (typical) and a test current of 5mA, achieving a millicandela rating of 79mcd. Its wide viewing angle of 145° makes it suitable for indication applications across various industries, including consumer electronics and industrial control systems. Provided in Tape & Reel packaging.
Additional Information
Series: NanoPoint-0201RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Green |
| Size / Dimension | 0.65mm L x 0.35mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 79mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Lens Color | Colorless |
| Current - Test | 5mA |
| Viewing Angle | 145° |
| Height (Max) | 0.25mm |
| Wavelength - Peak | 518nm |
| Wavelength - Dominant | 527nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 0.65mm x 0.35mm |
