XZBGA55W-2
LED GREEN CLEAR CHIP SMDManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

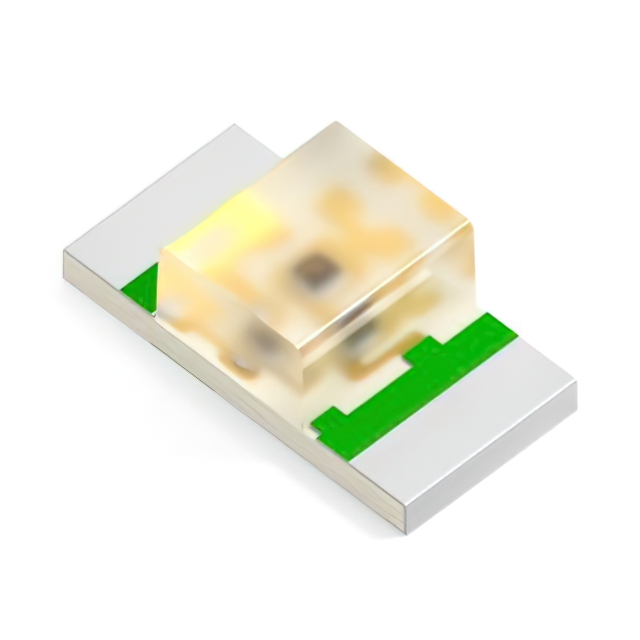

SunLED XZBGA55W-2 is a surface-mount Green LED, part of the LED Indication - Discrete category. This component features a clear, colorless lens and a standard configuration. It emits a dominant wavelength of 525nm with a peak wavelength of 520nm, providing clear indication with a typical forward voltage of 3.2V at 20mA. The LED boasts a luminous intensity of 178mcd and a wide viewing angle of 120°. Packaged in a 1206 (3216 Metric) case, measuring 3.20mm L x 1.60mm W and with a maximum height of 2.50mm, it is supplied on tape and reel (TR) for efficient automated assembly. This discrete LED is suitable for various applications including industrial control, consumer electronics, and telecommunications equipment, where reliable visual status indication is crucial.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 178mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.50mm |
| Wavelength - Peak | 520nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | - |
| Lens Size | - |
