XSMG92D
LED GRN DIFF RADIAL LEAD T/H R/AManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

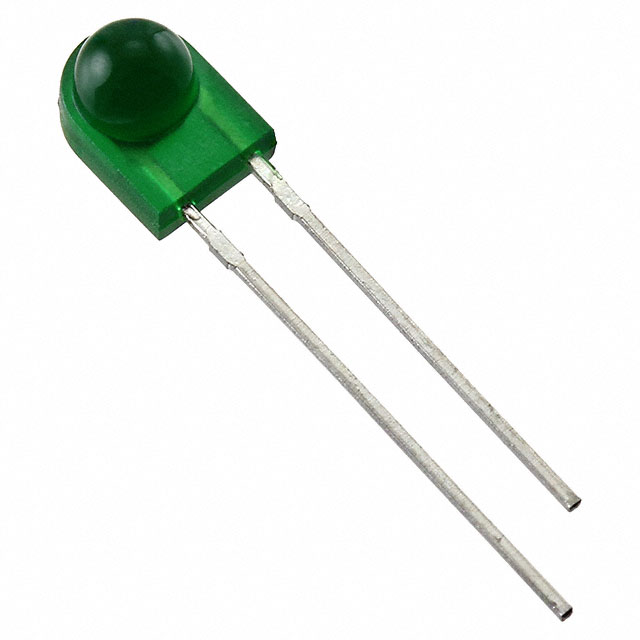

SunLED XSMG92D is a green, diffused, through-hole, right-angle LED indicator. This discrete component operates with a typical forward voltage of 2.2V and a forward current of 20mA, achieving a millicandela rating of 6mcd. Its dominant wavelength is 568nm, with a peak wavelength of 565nm. The LED features a green, diffused lens with a domed top, measuring 3.60mm in diameter, and a maximum height of 6.35mm. The viewing angle is 70°. This component is commonly utilized in industrial automation, medical devices, and consumer electronics for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green |
| Size / Dimension | - |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 6.35mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 568nm |
| Supplier Device Package | Radial Lead |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.60mm Dia |
