XSFRS23MBBA
LED ICE BLUE DIFF ICE CUBE T/HManufacturer: SunLED
Categories: LED Indication - Discrete
Quality Control: Learn More

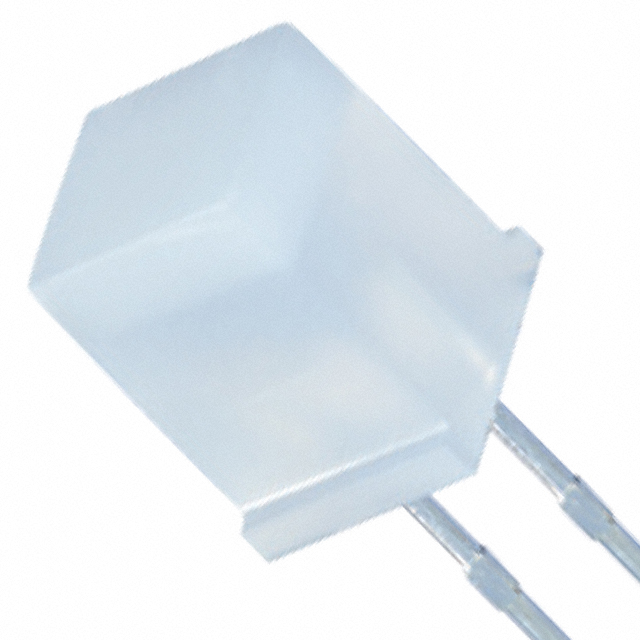

SunLED XSFRS23MBBA is a through-hole mounted discrete LED from the Ice Cube series, offering Ice Blue diffused illumination. This component features a standard configuration with a radial package and a square lens measuring 5.00mm x 5.00mm with a flat top. The diffused lens type and white lens color contribute to a uniform light output, achieving a typical forward voltage of 3.3V and a millicandela rating of 258mcd at a test current of 20mA. The viewing angle is rated at 110°, making it suitable for a variety of indication applications. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication and panel lighting. Supplied in bulk packaging.
Additional Information
Series: Ice CubeRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Ice Blue |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 258mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 110° |
| Height (Max) | 7.20mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | ICE CUBE LED |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 5.00mm |
