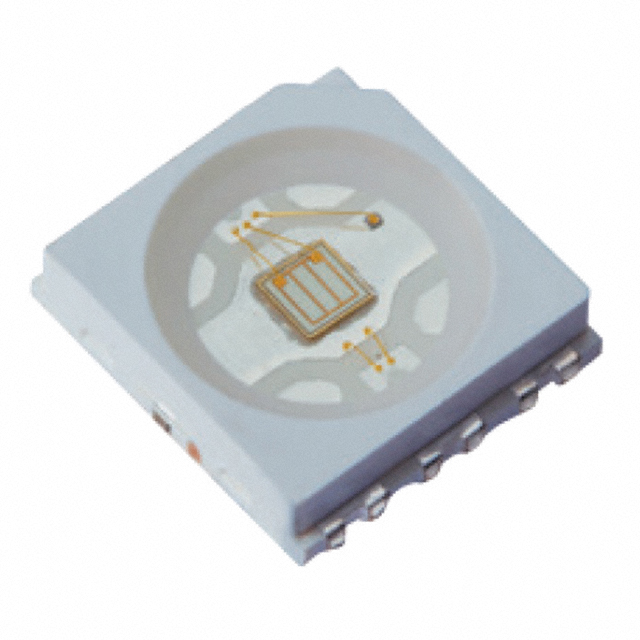

XZMDH146S
LED RED 625NM SMDManufacturer: SunLED
Categories: LED Color Lighting
Quality Control: Learn More
SunLED XZMDH146S is a red LED designed for surface mount applications. This component features a typical wavelength of 625nm and a luminous flux of 40lm at 350mA test current. The forward voltage is typically 2.5V. It is supplied in a 2020 (5050 Metric) package with a 120° viewing angle. The LED supports a maximum continuous current of 500mA and a test current of 350mA, delivering 46 lm/W at test conditions. The dimensions are 5.00mm x 5.00mm with a maximum seated height of 1.45mm. This component is packaged on a tape and reel (TR). Applications for this device include automotive lighting, industrial indicators, and general illumination.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Color | Red |
| Wavelength | 625nm (Typ) |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 500mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 46 lm/W |
| Height - Seated (Max) | 0.057"" (1.45mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 40lm (Typ) |
