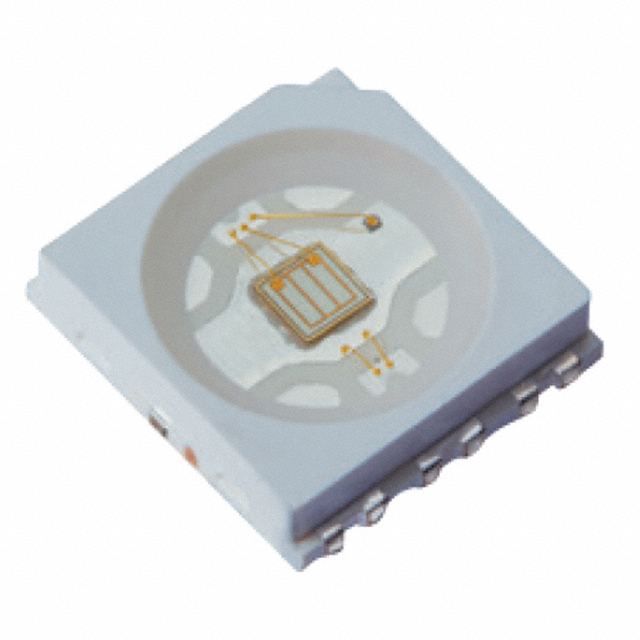

XZDG10X146S
LED GREEN 530NM SMDManufacturer: SunLED
Categories: LED Color Lighting
Quality Control: Learn More
The SunLED XZDG10X146S is a green surface-mount LED with a typical wavelength of 530nm. Housed in a 2020 (5050 Metric) package measuring 5.00mm x 5.00mm, this component offers a typical luminous flux of 48lm at a test current of 350mA. It features a forward voltage of 3.3V, a maximum current rating of 500mA, and a broad viewing angle of 120°. This LED is suitable for applications requiring efficient illumination, delivering 42 lm/W at 25°C. The component is supplied in tape and reel packaging for automated assembly. Its specifications make it applicable in various lighting and indicator solutions across consumer electronics, industrial controls, and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Color | Green |
| Wavelength | 530nm (Typ) |
| Size / Dimension | 0.197"" L x 0.197"" W (5.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 500mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 42 lm/W |
| Height - Seated (Max) | 0.057"" (1.45mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 48lm (Typ) |
