XZWR25X112S7WWB-A
LED MOD WM WHT LNR STRP 3000KManufacturer: SunLED
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

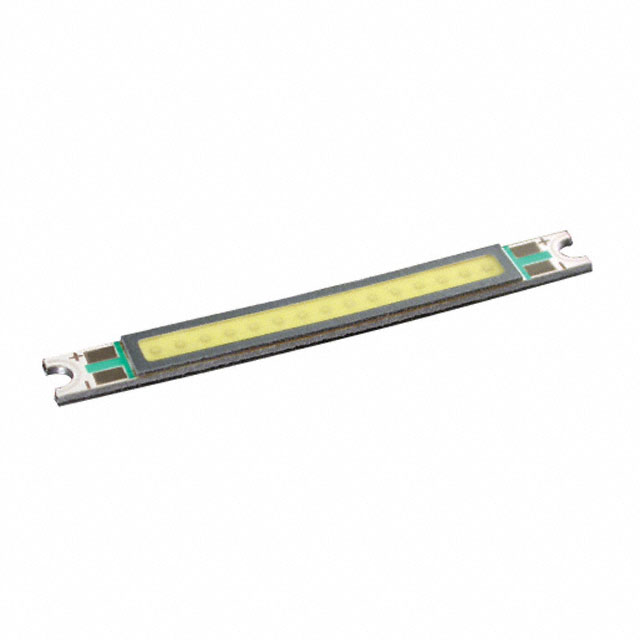

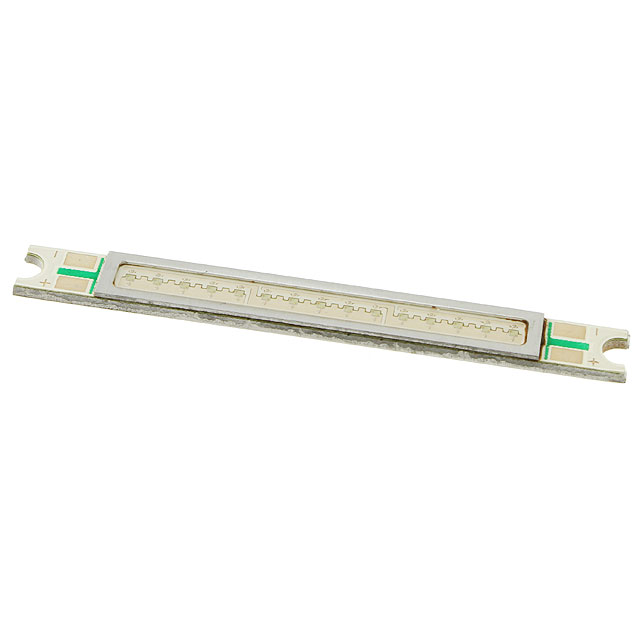

The SunLED XZWR25X112S7WWB-A is a white, warm linear LED module designed for illumination applications. This component features a 3000K color temperature with a typical luminous flux of 380lm at 700mA test current. The module operates with a forward voltage of 10.3V and achieves a luminous efficacy of 53 lm/W at its maximum rated current of 700mA. Its dimensions are 48.00mm L x 5.00mm W, with a height of 1.60mm, and it utilizes a flat lens type. The light emitting surface measures 32.40mm L x 3.0mm W. This LED module is suitable for use in general lighting, architectural lighting, and display applications. It is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 48.00mm L x 5.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 10.3V |
| Height | 1.60mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 53 lm/W |
| CCT (K) | 3000K (2870K ~ 3220K) |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 32.40mm L x 3.0mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 380lm (Typ) |
Request a Quote
Clients Also Buy

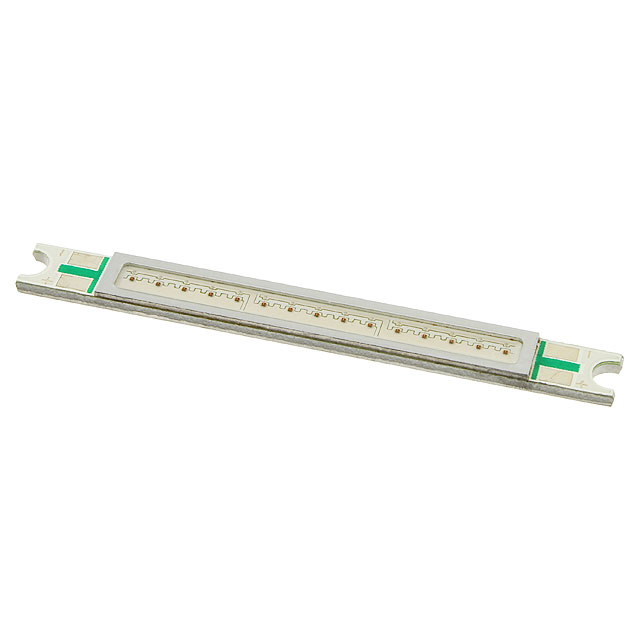

XZMOLA112S5W-A
LED MOD RED LNR LGT STRIP
XZWR25X112S7WCA-A
LED MOD WHT LNR LGT STRIP 6000K

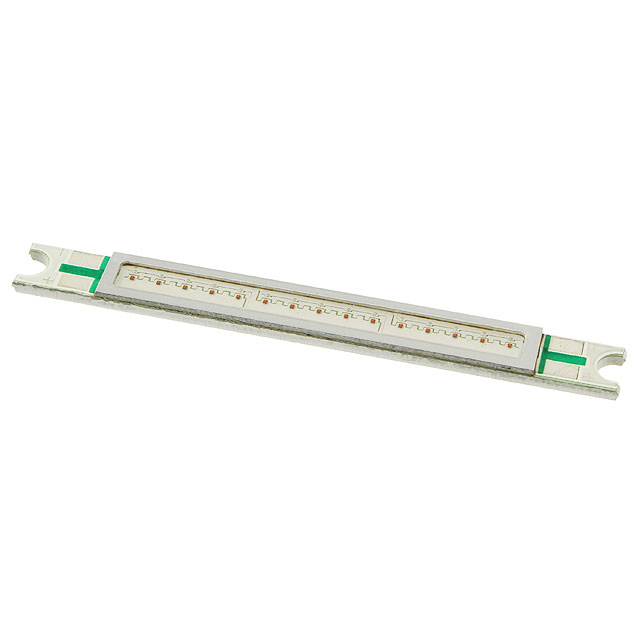

XZMYLA112S5W-A
