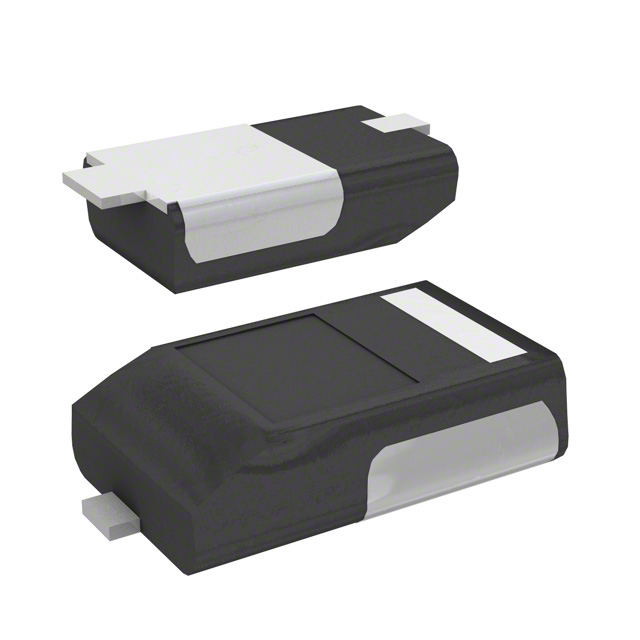

SMM4F12AVCL
TVS DIODE 12VWM 22.9V STMITE FLTManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics SMM4F12AVCL is a unidirectional TRANSIL™ TVS diode from the SMM4F series. This surface mount component, packaged in a DO-222AA STmite Flat, offers 12V reverse standoff voltage and a 13V minimum breakdown voltage. It features a 22.9V maximum clamping voltage at 100A (8/20µs) peak pulse current, with a 400W peak pulse power rating. The operating temperature range is -55°C to 175°C. This device is suitable for general-purpose applications requiring transient voltage suppression.
Additional Information
Series: SMM4F, TRANSIL™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-222AA |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 100A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 12V |
| Supplier Device Package | STmite Flat |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 13V |
| Voltage - Clamping (Max) @ Ipp | 22.9V |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
