SMA6F58A
TVS DIODE 58VWM 121VC SMAFLATManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics SMA6F58A is a unidirectional TVS diode from the SMA6FxxA series, designed for robust transient voltage suppression. This surface mount component, housed in a SMAflat (DO-221AC) package, offers a 58V reverse standoff voltage and a 64.6V minimum breakdown voltage. It provides a maximum clamping voltage of 121V at a peak pulse current of 33A (8/20µs), with a peak pulse power rating of 600W. The device operates across a wide temperature range of -55°C to 175°C. Its compact footprint and high surge capability make it suitable for general-purpose applications, particularly in automotive and industrial electronics requiring protection against voltage transients. The component is supplied in Tape & Reel packaging.
Additional Information
Series: SMA6FxxARoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 33A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 58V (Max) |
| Supplier Device Package | SMAflat |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 64.6V |
| Voltage - Clamping (Max) @ Ipp | 121V |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
Request a Quote
Clients Also Buy

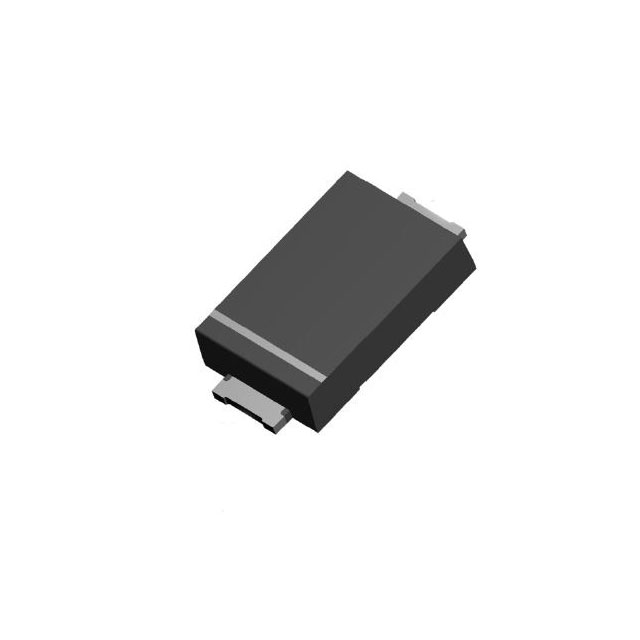

SMA6F36A
