SMA6F30A
TVS DIODE 30VWM 48.4VC SMAFLATManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More

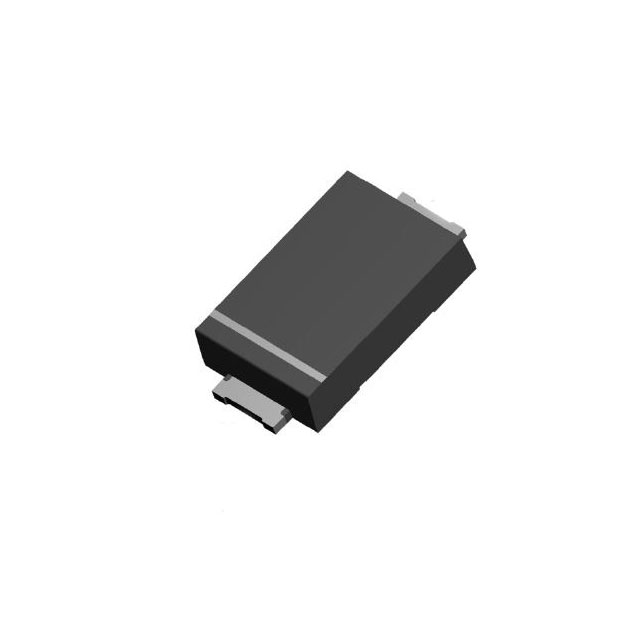

STMicroelectronics SMA6F30A is a 600W unidirectional transient voltage suppressor diode from the SMA6F series. Featuring a 30V reverse standoff voltage and a 33.2V minimum breakdown voltage, this device offers a maximum clamping voltage of 48.4V at a peak pulse current of 13A. Its SMAflat package (DO-221AC, SMA Flat Leads) is designed for efficient surface mounting. The operating junction temperature range is -55°C to 175°C. This component is suitable for general-purpose applications across various industries requiring robust overvoltage protection. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: SMA6FRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 13A |
| Voltage - Reverse Standoff (Typ) | 30V |
| Supplier Device Package | SMAflat |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 33.2V |
| Voltage - Clamping (Max) @ Ipp | 48.4V |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
