SMA6F26AY
TVS DIODE 26VWM 42.1VC SMAFLATManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More

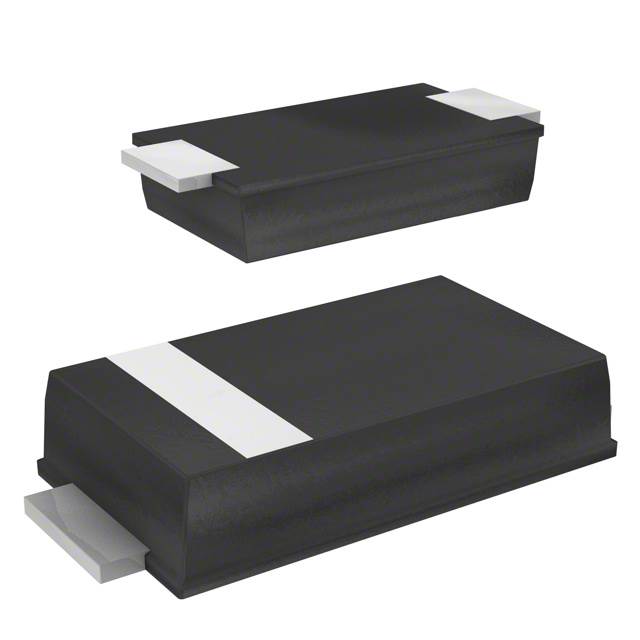

STMicroelectronics SMA6F26AY is a unidirectional TVS diode from the SMA6F series, designed for robust transient voltage suppression. This surface mount component, packaged in a DO-221AC, SMA Flat Leads (SMAflat), offers a reverse standoff voltage of 26V and a breakdown voltage of 28.9V. It features a peak pulse current capability of 14.9A with a clamping voltage of 42.1V at this current, and a peak pulse power of 600W. The operating temperature range is -55°C to 175°C (TJ). Qualified to AEC-Q101, this diode is suitable for automotive applications and is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: SMA6FRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 14.9A |
| Voltage - Reverse Standoff (Typ) | 26V |
| Supplier Device Package | SMAflat |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
