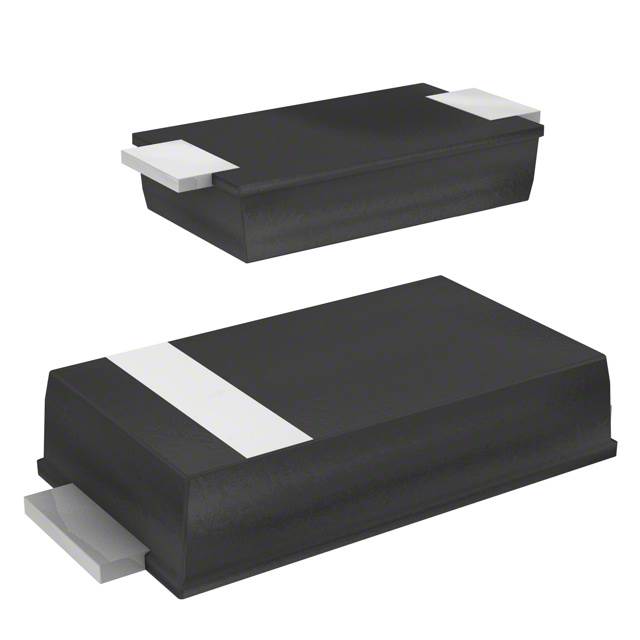

SMA4F5.0A-TR
TVS DIODE 5V 13.4V SMAFLATManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics SMA4F5-0A-TR is a unidirectional TRANSIL™ TVS diode designed for robust transient voltage suppression. Featuring a 5V reverse standoff voltage and a minimum breakdown voltage of 6.4V, this device offers a maximum clamping voltage of 13.4V at a peak pulse current of 174A (8/20µs). With a peak pulse power rating of 400W, it provides effective protection in demanding applications. The SMAflat (DO-221AC) surface mount package ensures efficient integration onto PCBs. Operating across a wide temperature range of -55°C to 175°C, this component is suitable for general-purpose applications in areas such as automotive and industrial electronics where transient voltage protection is critical. The device is supplied in tape and reel packaging.
Additional Information
Series: SMA4F, TRANSIL™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 174A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V |
| Supplier Device Package | SMAflat |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 13.4V |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
