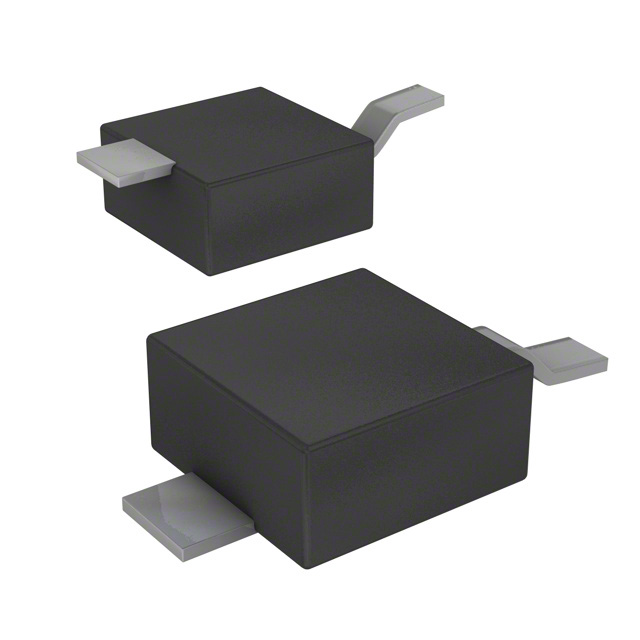

SM2T3V3A
TVS DIODE 3.3VWM 6.8VC DO216AAManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
The STMicroelectronics SM2T3V3A is a unidirectional transient voltage suppressor (TVS) diode from the SM2T, TRANSIL™ series, designed for robust protection against voltage transients. This component features a reverse standoff voltage of 3.3V and a breakdown voltage of 3.6V minimum. It offers a clamping voltage of 6.8V at a peak pulse current (Ipp) of 30A, with a peak pulse power rating of 200W for a 10/1000µs waveform. The device is housed in a DO-216AA surface mount package and exhibits a low capacitance of 2500pF at 1MHz, making it suitable for various high-speed applications. Its construction is optimized for general-purpose protection across industries requiring reliable overvoltage suppression. The SM2T3V3A is supplied on tape and reel.
Additional Information
Series: SM2T, TRANSIL™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-216AA |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | - |
| Applications | General Purpose |
| Capacitance @ Frequency | 2500pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 30A |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Supplier Device Package | DO-216AA |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 3.6V |
| Voltage - Clamping (Max) @ Ipp | 6.8V |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
