P6KE250CARL
TVS DIODE 213VWM 442VC DO15Manufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics P6KE250CARL is a TRANSIL™ series transient voltage suppressor diode. This bidirectional device offers a reverse standoff voltage of 213V and a breakdown voltage of 237V (minimum). It provides a clamping voltage of 442V at a peak pulse current of 9A (8/20µs waveform), with a peak pulse power rating of 600W. The P6KE250CARL features a typical capacitance of 155pF at 1MHz. This through-hole component is housed in a DO-204AC (DO-15) axial package and is supplied on tape and reel. It is suitable for general-purpose applications in automotive and industrial sectors requiring robust overvoltage protection.
Additional Information
Series: P6KE, TRANSIL™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

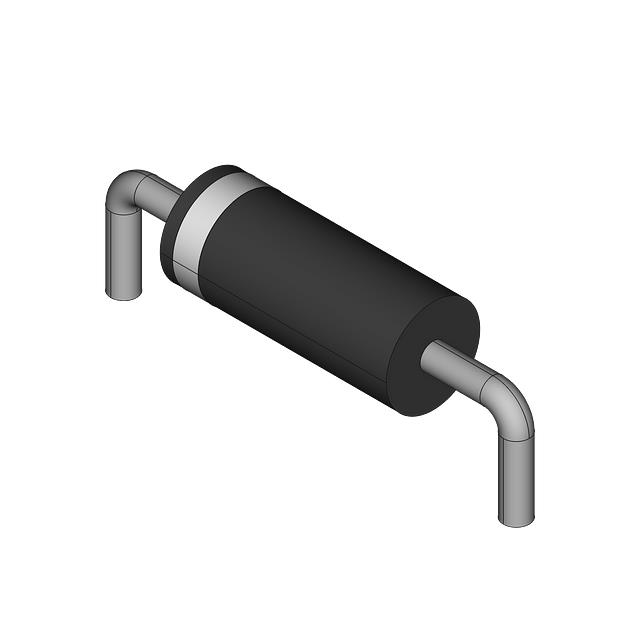

| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | - |
| Applications | General Purpose |
| Capacitance @ Frequency | 155pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 9A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 213V |
| Supplier Device Package | DO-204AC (DO-15) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 237V |
| Voltage - Clamping (Max) @ Ipp | 442V |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
