LNBTVS6-220S
TVS DIODE 20VWM 35VC SMCManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics LNBTVS6-220S, a TRANSIL™ series transient voltage suppressor diode, offers robust circuit protection. This SMC package device features a 20V reverse standoff voltage and a 22V minimum breakdown voltage. It provides a 35V clamping voltage at a peak pulse current of 500A (8/20µs), with a peak pulse power dissipation of 22.5kW. Designed for general-purpose applications, this unidirectional device operates across a wide temperature range of -55°C to 150°C. It is supplied in Tape & Reel packaging.
Additional Information
Series: LNBTVS, TRANSIL™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 500A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 20V |
| Supplier Device Package | SMC |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 22V |
| Voltage - Clamping (Max) @ Ipp | 35V |
| Power - Peak Pulse | 22500W (22.5kW) |
| Power Line Protection | No |
Request a Quote
Clients Also Buy

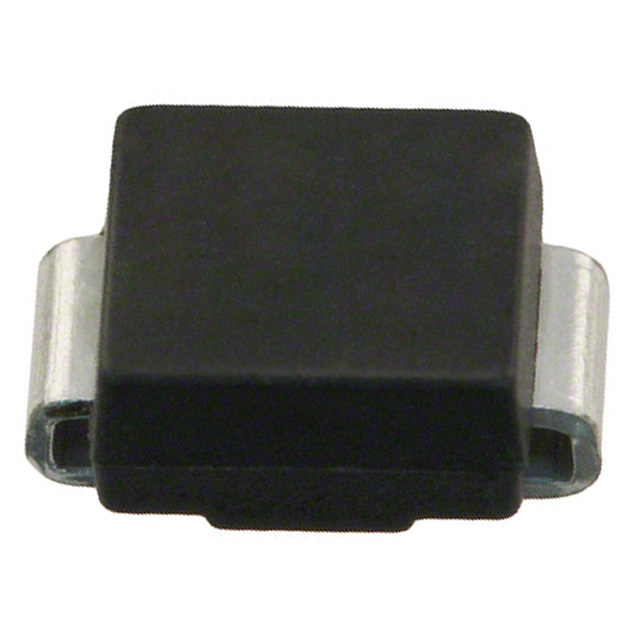

LNBTVS3-220U
TVS DIODE 20VWM 35VC SMB

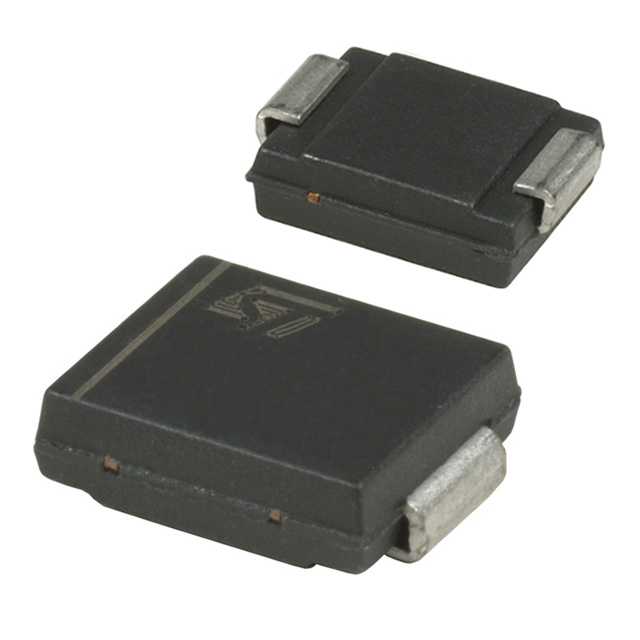

LNBTVS4-220S
