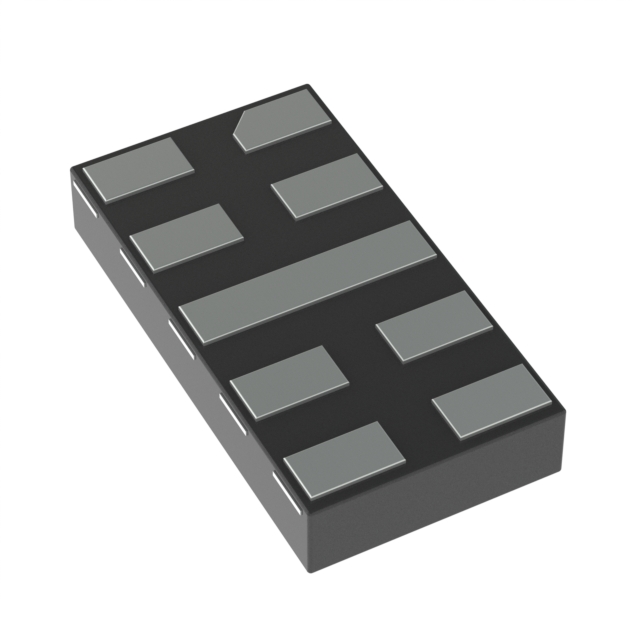

HSP054-4N10
TVS DIODE 5VWM 3.8VC 10UQFNManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
The STMicroelectronics HSP054-4N10 is a 4-channel steering transient voltage suppressor (TVS) diode designed for robust protection in demanding applications. Featuring a 5V reverse standoff voltage and a low 3.8V typical clamping voltage at 3A (8/20µs), this device excels in safeguarding sensitive circuitry. Its 10-uQFN (1.9x1) surface mount package offers a compact footprint suitable for high-density designs. The HSP054-4N10 is commonly employed in USB interfaces and other power line protection scenarios where high peak pulse current handling is critical. Operating across an industrial temperature range of -40°C to 150°C, it provides reliable performance in challenging environments.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-XFDFN |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Applications | USB |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 10-uQFN (1.9x1) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 3.8V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
