HDMIULC6-2P6
TVS DIODE 5VWM 17VC SOT666Manufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics HDMIULC6-2P6 is a 2-line, bidirectional, steering type transient voltage suppressor (TVS) diode designed for robust protection in high-speed interfaces. This SOT-666 packaged component offers a reverse standoff voltage of 5V and a breakdown voltage of 6V minimum. It features a low clamping voltage of 17V at a peak pulse current of 5A (8/20µs), effectively safeguarding sensitive circuitry. With a low capacitance of 0.85pF at 825MHz, it minimizes signal integrity impact. The HDMIULC6-2P6 is suitable for applications demanding protection against electrostatic discharge (ESD) and other transient overvoltages, commonly found in Ethernet and HDMI interfaces. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: HDMIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | - |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | 0.85pF @ 825MHz |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V |
| Supplier Device Package | SOT-666 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
Request a Quote
Clients Also Buy

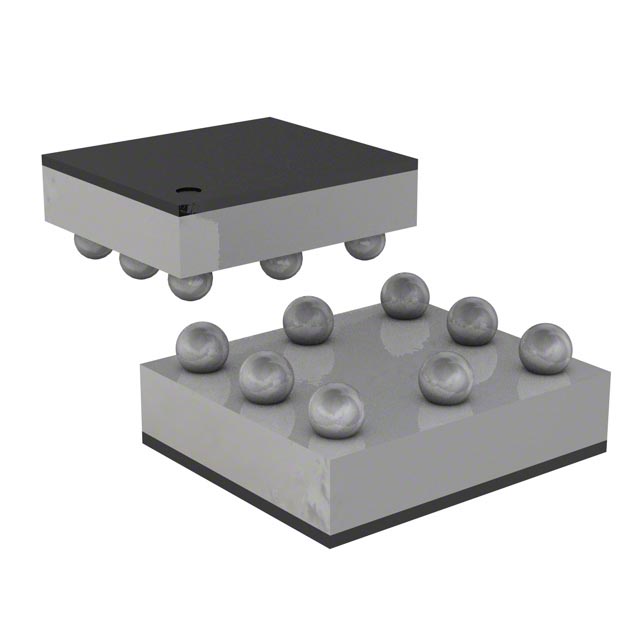

HDMI05-CL01F3
TVS DEVICE MIXED 8FLIPCHIP

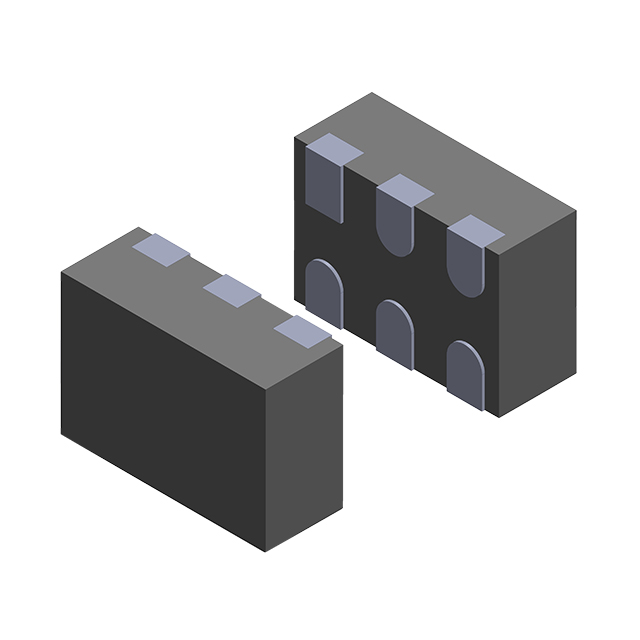

HDMIULC6-2M6
TVS DIODE 5VWM 17VC 6UQFN

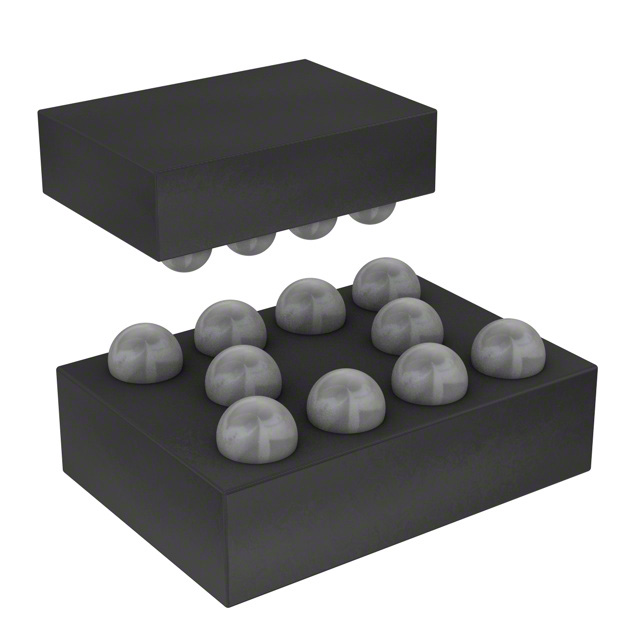

HDMIULC6-4F3
