ESDARF01-1BM2
TVS DIODE 100MVWM SOD882Manufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics ESDA series ESD protection diode, part number ESDARF01-1BM2. This bidirectional transient voltage suppressor (TVS) is housed in a compact SOD-882 package, suitable for surface mount applications. It features a low reverse standoff voltage of 100mV and a breakdown voltage of 700mV minimum. With a typical capacitance of 3pF at 1MHz, this device is optimized for protecting sensitive RF antenna circuitry. The ESDARF01-1BM2 is designed to safeguard against electrostatic discharge events, making it a critical component in telecommunications and consumer electronics where RF signal integrity is paramount. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: ESDARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-882 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | - |
| Applications | RF Antenna |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 100mV |
| Supplier Device Package | SOD-882 |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 700mV |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
Request a Quote
Clients Also Buy
ESDALC6-4N4
TVS DIODE 3VWM 10VC 4UQFN

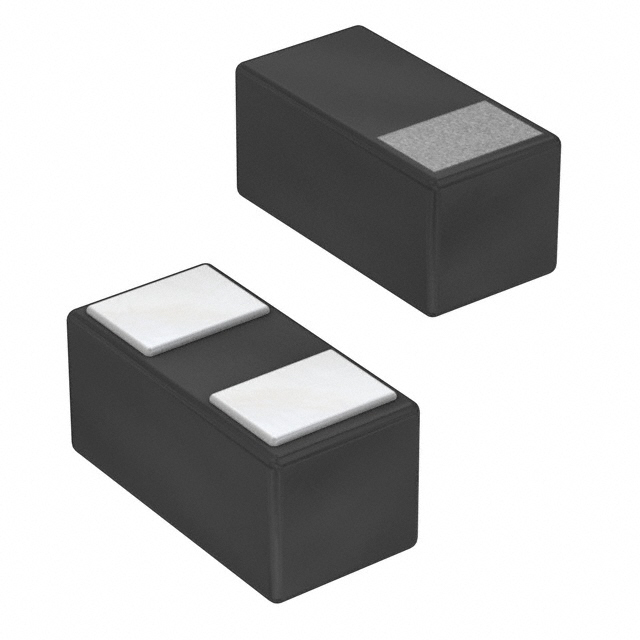

ESDARF01-1BF4
