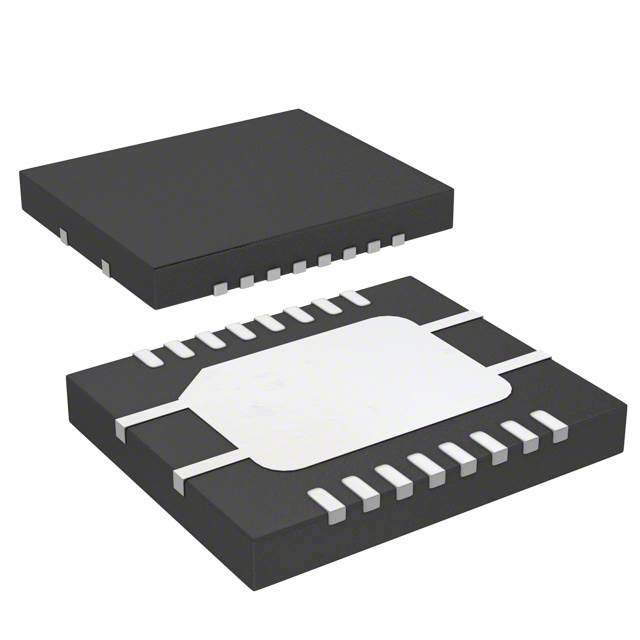

DPIULC6-6DJL
TVS DIODE 3VWM 17VC 18DFNManufacturer: STMicroelectronics
Categories: TVS Diodes
Quality Control: Learn More
STMicroelectronics DPI series steering diode, part number DPIULC6-6DJL, offers robust transient voltage suppression. This 18-DFN (5x6) packaged device features 4 unidirectional channels with a reverse standoff voltage of 3V. The breakdown voltage is a minimum of 6V, with a clamping voltage of 17V at a peak pulse current of 5A (8/20µs). The low capacitance of 1.5pF @ 1MHz makes it suitable for high-speed data lines. This component is designed for general-purpose applications, including automotive and industrial systems requiring protection against voltage transients. It operates within an ambient temperature range of -40°C to 125°C and is supplied on tape and reel.
Additional Information
Series: DPIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 1.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3V |
| Supplier Device Package | 18-DFN (5x6) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
