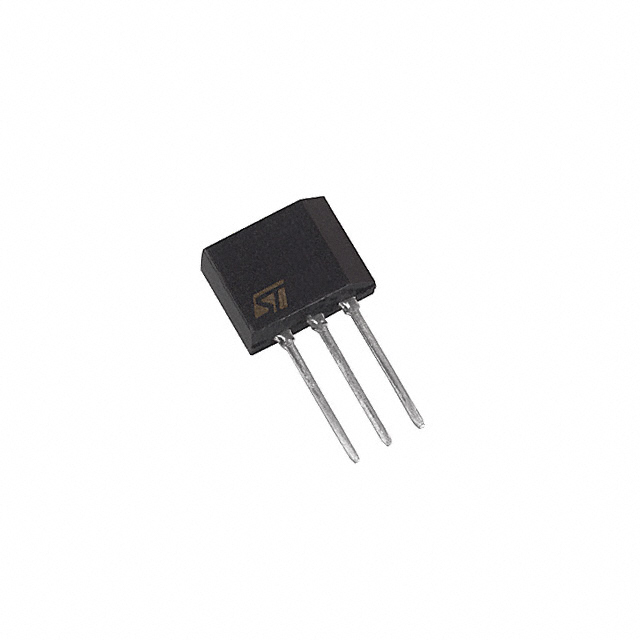

Z0409NF 1AA2
TRIAC SENS GATE 800V 4A TO202-3Manufacturer: STMicroelectronics
Categories: TRIACs
Quality Control: Learn More
STMicroelectronics Z0409NF-1AA2 is a sensitive gate TRIAC designed for AC power control applications. This single-configuration device features an 800V off-state blocking voltage and a 4A RMS on-state current capability. The Z0409NF-1AA2 exhibits a maximum gate trigger current (Igt) of 10mA and a maximum gate trigger voltage (Vgt) of 1.3V, facilitating control with low-power logic devices. Its holding current (Ih) is also rated at a maximum of 10mA. The component is housed in a TO-202-3 package, a through-hole mounting type, and operates within an ambient temperature range of -40°C to 125°C. This TRIAC is suitable for use in motor control, lighting control, and solid-state relay applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-202 No Tab |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 21A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-202-3 |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 800 V |
