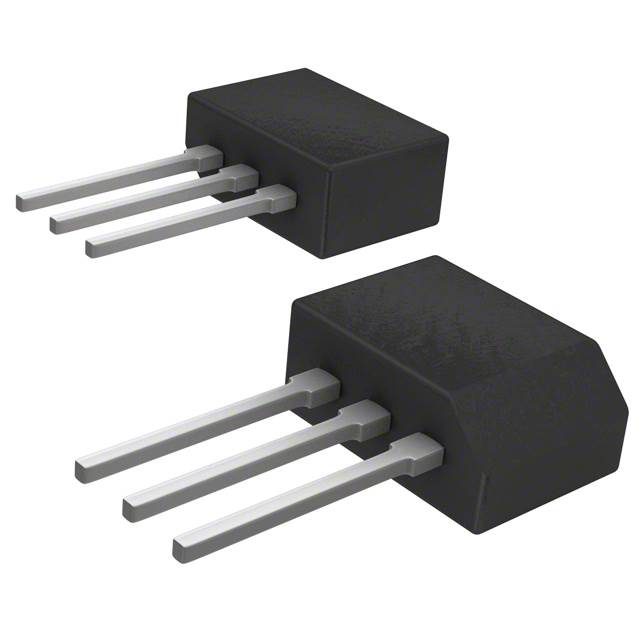

Z0405MF 1AA2
TRIAC SENS GATE 600V 4A TO202-3Manufacturer: STMicroelectronics
Categories: TRIACs
Quality Control: Learn More
STMicroelectronics Z0405MF-1AA2 is a sensitive gate TRIAC designed for AC power control applications. This single TRIAC offers a 600V off-state voltage and a 4A RMS on-state current. With a maximum gate trigger current (Igt) of 5mA and a maximum gate trigger voltage (Vgt) of 1.3V, it ensures reliable triggering from low-power control sources. The device features a hold current (Ih) of 5mA and a non-repetitive surge current (Itsm) of 20A/21A at 50/60Hz. Encased in a TO-202-3 package, it is suitable for through-hole mounting. Operating across a temperature range of -40°C to 125°C (TJ), the Z0405MF-1AA2 is commonly utilized in lighting control, motor control, and power switching circuits within the industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | TO-202 No Tab |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 5 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 21A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-202-3 |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 600 V |
