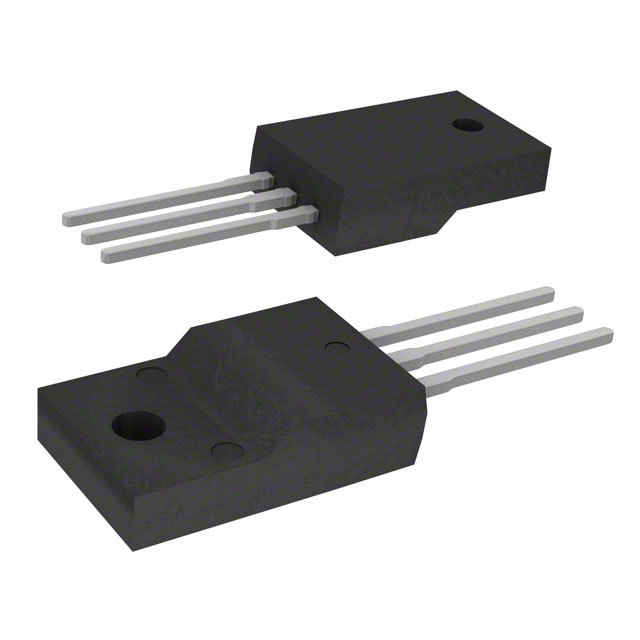

T630-800W
TRIAC ALTERNISTOR 800V ISOWATTManufacturer: STMicroelectronics
Categories: TRIACs
Quality Control: Learn More
STMicroelectronics TRIAC Alternistor, Snubberless™ series, T630-800W. This single TRIAC component offers an 800V off-state voltage and a 6A RMS on-state current. Featuring a Snubberless™ design, it minimizes the need for external snubber circuits. Key parameters include a maximum gate trigger current (Igt) of 30mA and a maximum hold current (Ih) of 50mA, with a gate trigger voltage (Vgt) of 1.3V. The non-repetitive surge current capability is 80A/84A at 50Hz/60Hz. Packaged in an ISOWATT220AB through-hole format, this device operates efficiently across a temperature range of -40°C to 125°C. Applications include motor control, power switching, and lighting control systems across industrial and consumer electronics sectors.
Additional Information
Series: Snubberless™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | ISOWATT220AB-3 |
| Mounting Type | Through Hole |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 80A, 84A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | ISOWATT220AB |
| Current - On State (It (RMS)) (Max) | 6 A |
| Voltage - Off State | 800 V |
