T435-600W
TRIAC ALTERNISTOR 600V ISOWATTManufacturer: STMicroelectronics
Categories: TRIACs
Quality Control: Learn More
STMicroelectronics T435-600W is a Snubberless™ TRIAC Alternistor designed for robust AC power switching applications. This single-configuration device features a 600V off-state voltage and a 4A RMS on-state current capability. It is engineered with a snubberless design, reducing the need for external snubber circuits. Key triggering parameters include a maximum gate trigger current (Igt) of 35 mA and a maximum gate trigger voltage (Vgt) of 1.3V, with a hold current (Ih) also at 35 mA. The component exhibits a non-repetitive surge current rating of 30A and 31A at 50Hz and 60Hz respectively.

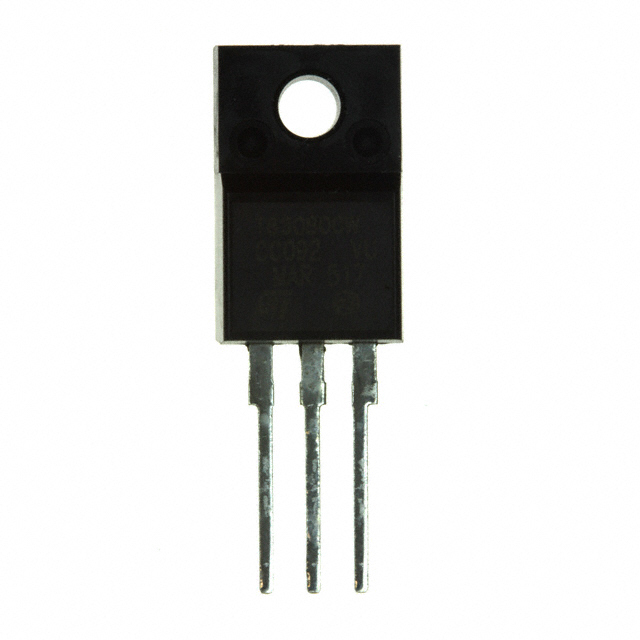

The T435-600W is housed in an ISOWATT220AB package, suitable for through-hole mounting. Its operational temperature range spans from -40°C to 125°C (TJ). This TRIAC is commonly employed in power control systems within the appliance, industrial automation, and lighting control sectors. Supplied in tube packaging.
Additional Information
Series: Snubberless™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | ISOWATT220AB-3 |
| Mounting Type | Through Hole |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 35 mA |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 30A, 31A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | ISOWATT220AB |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 600 V |
