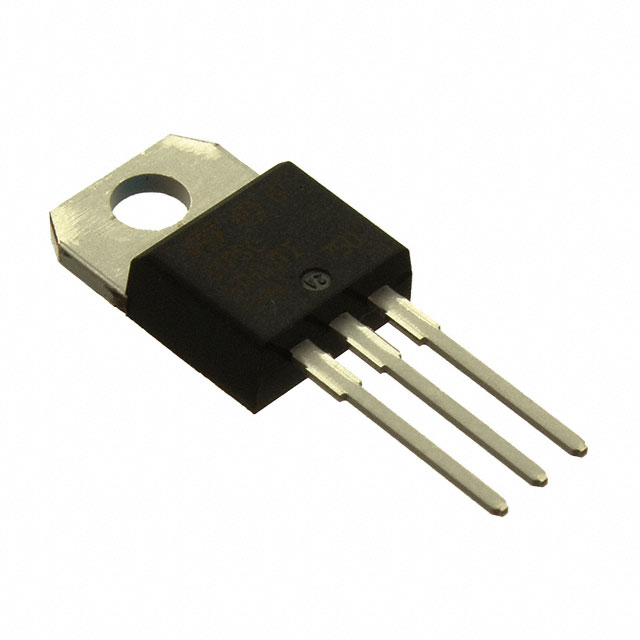

T1610T-6I
TRIAC SENS GATE 600V 16A TO220ABManufacturer: STMicroelectronics
Categories: TRIACs
Quality Control: Learn More
STMicroelectronics T1610T-6I is a logic-sensitive gate TRIAC designed for AC power control applications. This single TRIAC component features a 600V off-state voltage and a maximum RMS on-state current of 16A. It is packaged in a TO-220AB insulated through-hole configuration, facilitating ease of mounting and thermal management. Key gate trigger specifications include a maximum Igt of 10mA and a maximum Vgt of 1.3V. The component exhibits a hold current (Ih) of 12mA and a non-repetitive surge current capability of 120A at 50Hz and 126A at 60Hz. Operating temperature ranges from -40°C to 125°C (TJ). This TRIAC is commonly employed in industrial automation, lighting control, and motor drive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 12 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A, 126A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-220AB Insulated |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Off State | 600 V |
