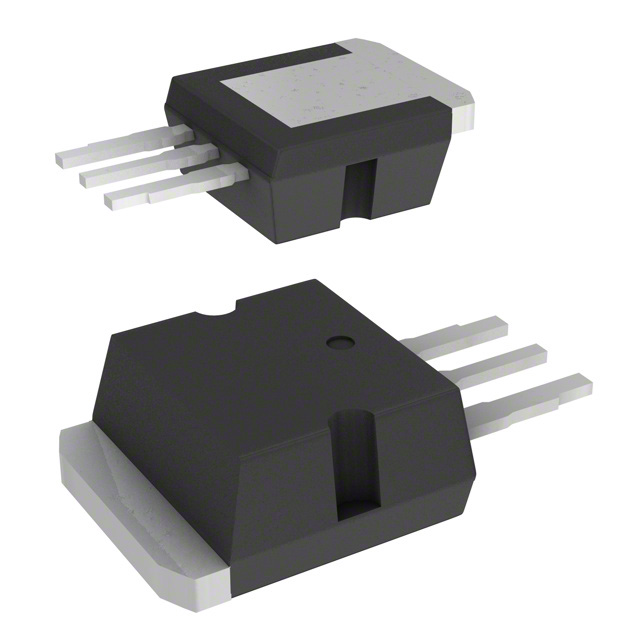

ACST6-7SR
TRIAC SENS GATE 700V 6A I2PAKManufacturer: STMicroelectronics
Categories: TRIACs
Quality Control: Learn More
STMicroelectronics ACST6-7SR is a single, sensitive gate TRIAC designed for high-performance applications. This TRIAC offers a 700V off-state voltage and a maximum on-state RMS current of 6A. The logic-level gate trigger requires a maximum of 1.5V and 10mA (Igt) for activation. With a holding current (Ih) of 25mA and a non-repetitive surge current rating of 45A (50Hz) or 50A (60Hz), it provides robust performance under demanding conditions. The ACST6-7SR is housed in an I2PAK package (TO-262-3 Short Leads) for through-hole mounting, suitable for industrial control, motor control, and power switching applications. It operates within a temperature range of -30°C to 125°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Short Leads, I2PAK |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -30°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 25 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 45A, 50A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Supplier Device Package | I2PAK |
| Current - On State (It (RMS)) (Max) | 6 A |
| Voltage - Off State | 700 V |
