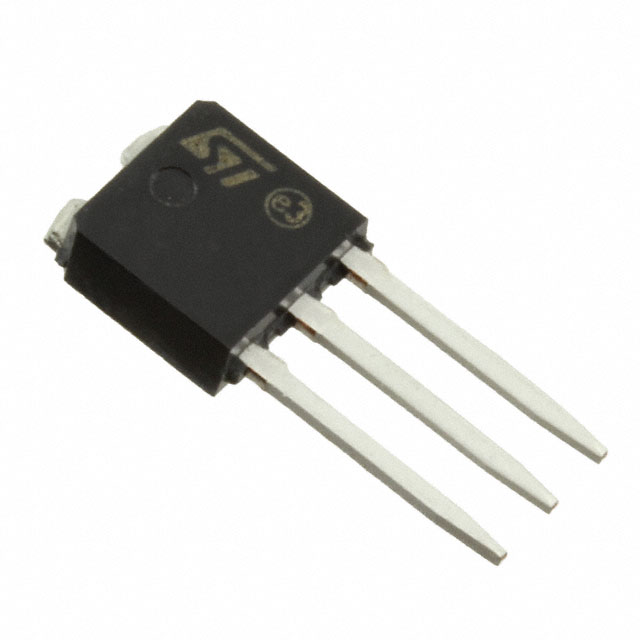

ACST4-7CH
TRIAC 700V 4A IPAKManufacturer: STMicroelectronics
Categories: TRIACs
Quality Control: Learn More
STMicroelectronics ACST4-7CH is a standard TRIAC with a 700V off-state voltage and a 4A RMS on-state current. This component features a 25mA maximum gate trigger current and a 1.1V maximum gate trigger voltage. The ACST4-7CH offers a non-repetitive surge current capability of 30A at 50Hz and 33A at 60Hz. Designed for through-hole mounting in an IPAK package (TO-251-3 Long Leads), it operates within a temperature range of -30°C to 125°C. Its hold current is rated at a maximum of 35mA. This TRIAC is commonly utilized in various industrial and consumer applications requiring AC power control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Long Leads, IPak, TO-251AB |
| Mounting Type | Through Hole |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -30°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 35 mA |
| Current - Gate Trigger (Igt) (Max) | 25 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 30A, 33A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.1 V |
| Supplier Device Package | IPAK |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 700 V |
