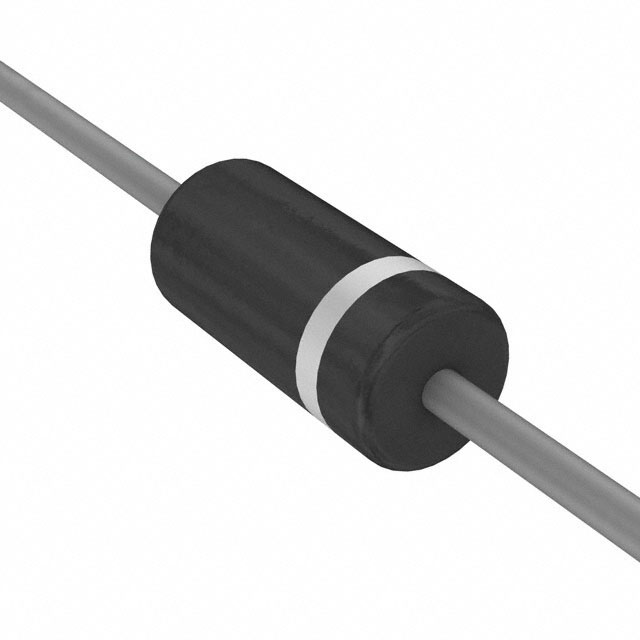

TPA180RL
THYRISTOR 180V 150A DO204ACManufacturer: STMicroelectronics
Categories: Thyristors
Quality Control: Learn More
STMicroelectronics TPA, TRISIL™ series TPA180RL is a 180V off-state thyristor designed for robust surge protection. This component features a 150A peak pulse current rating (8/20µs) and a 50A peak pulse current rating (10/1000µs). The TPA180RL has a breakover voltage of 240V and a hold current of 150mA. With a low capacitance of 25pF, it minimizes signal distortion. The through-hole mounting type and DO-204AC (DO-15) axial package facilitate integration into various designs. This device is suitable for applications requiring transient voltage suppression in industrial automation, power control systems, and automotive electronics. The TPA180RL is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: TPA, TRISIL™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Capacitance | 25pF |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Voltage - Breakover | 240V |
| Voltage - Off State | 180V |
| Supplier Device Package | DO-204AC (DO-15) |
| Current - Hold (Ih) | 150 mA |
| Current - Peak Pulse (10/1000µs) | 50 A |
| Current - Peak Pulse (8/20µs) | 150 A |
