STTS2002B2DN3F
IC MEMORY MOD TEMP SENSOR 8TDFNManufacturer: STMicroelectronics
Categories: Thermal Management
Quality Control: Learn More
The STMicroelectronics STTS2002B2DN3F is a highly integrated temperature monitoring system designed for precise thermal management. This component features an internal temperature sensor with an operating range of -40°C to 125°C, offering an accuracy of ±3°C maximum. Communication is facilitated via the I2C/SMBus output interface, supporting a supply voltage range of 2.3V to 3.6V. The device's topology includes Sigma Delta ADC, EEPROM, and a register bank for flexible configuration and data acquisition. Packaged in an 8-TDFN (2x3) with an exposed pad, it is suitable for surface mount applications. The STTS2002B2DN3F is commonly utilized in consumer electronics, industrial automation, and automotive systems where reliable temperature sensing and monitoring are critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | I2C/SMBus |
| Mounting Type | Surface Mount |
| Function | Temp Monitoring System (Sensor) |
| Accuracy | ±3°C(Max) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.3V ~ 3.6V |
| Sensor Type | Internal |
| Sensing Temperature | -40°C ~ 125°C |
| Topology | ADC (Sigma Delta), EEPROM, Register Bank |
| Output Alarm | Yes |
| Output Fan | No |
| Supplier Device Package | 8-TDFN (2x3) |
Request a Quote
Clients Also Buy

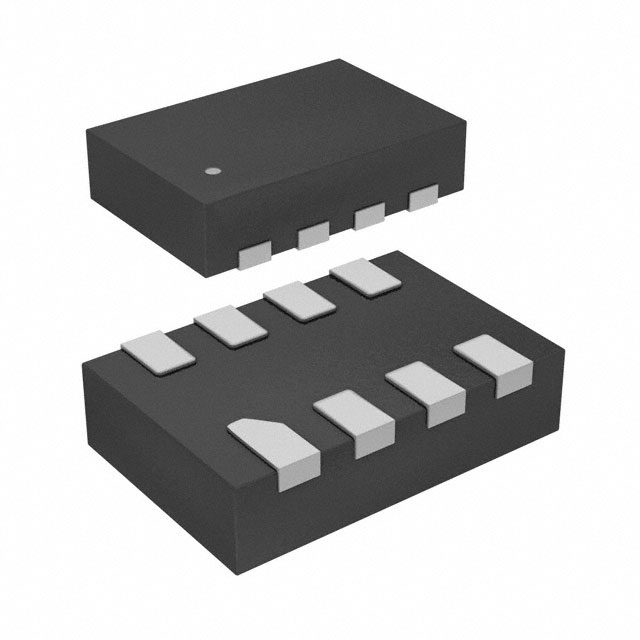

STTS3000B2DN3F
