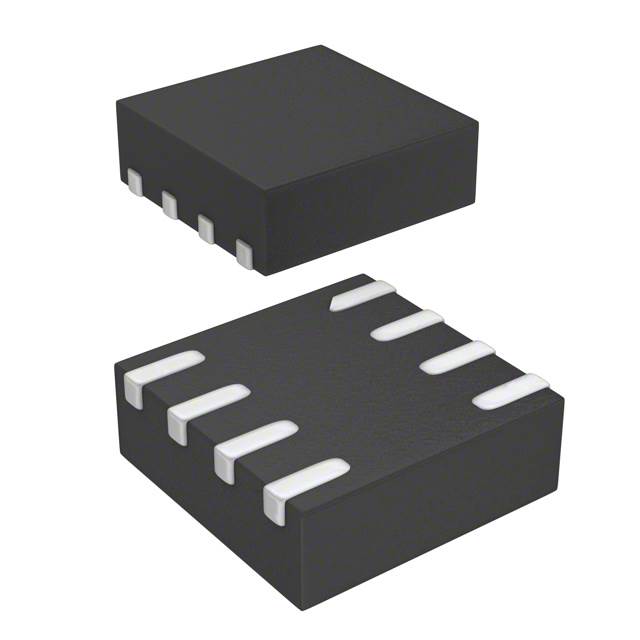

STM6505SCABDG6F
IC SUPERVISOR 1 CHANNEL 8TDFNManufacturer: STMicroelectronics
Categories: Supervisors
Quality Control: Learn More
STMicroelectronics STM6505SCABDG6F, a Smart Reset™ series supervisor, provides robust system reset functionality. This single-channel device features an open-drain or open-collector output and is housed in a compact 8-TDFN (2x2) package, suitable for surface-mount applications. The STM6505SCABDG6F monitors a single voltage threshold of 2.925V and offers an active-low reset with a minimum timeout of 240ms. Its operating temperature range of -40°C to 85°C (TA) makes it ideal for demanding environments. This component finds application in automotive, industrial automation, and portable electronics, where reliable power-on reset and system monitoring are critical. The STM6505SCABDG6F is supplied in tape and reel packaging.
Additional Information
Series: Smart Reset™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Reset Timer |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 240ms Minimum |
| Voltage - Threshold | 2.925V |
| Supplier Device Package | 8-TDFN (2x2) |
| Programmable | Not Verified |
