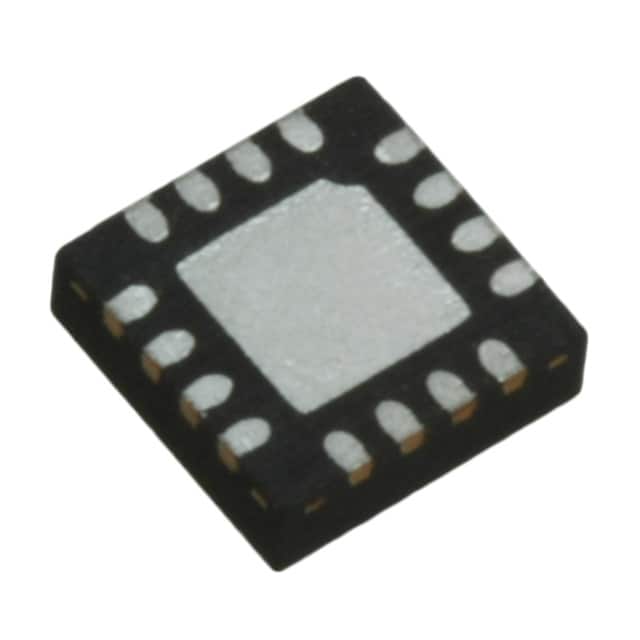

STM1403ATOQ6F
IC SUPERVISOR 1 CHANNEL 16QFNManufacturer: STMicroelectronics
Categories: Supervisors
Quality Control: Learn More
STMicroelectronics STM1403ATOQ6F is a single-channel supervisor designed for robust power-on reset and system integrity monitoring. This component features an open-drain or open-collector output, configurable for active-low reset signals with a minimum timeout of 140ms. The device monitors a single voltage threshold set at 3.08V. It is supplied in a compact 16-QFN (3x3) package, suitable for surface mounting and delivered on tape and reel. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in demanding environments. This supervisor is commonly utilized in applications requiring precise voltage supervision and reliable reset generation, such as in automotive systems, industrial control, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 3.08V |
| Supplier Device Package | 16-QFN (3x3) |
| Programmable | Not Verified |
